• Universal Fit for Dexter, Rockwell, Hayes / ALKO, & More
• OEM Quality Replacement Part
• CSA Approved Brakes
• Complete Assembly Ready to Bolt On and Wire
• Fits Standard Axles, attaches to the axle brake mounting flange

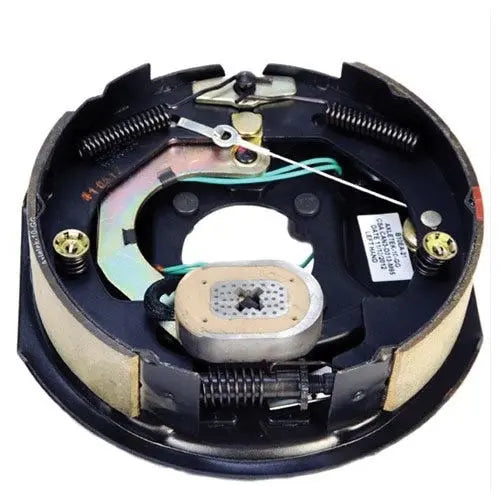

10" x 2-1/4" Right Hand electric complete brake assembly.  3,500lb capacity per pair.  Mounts with 4 bolts (included), bolts are 2-7/8" apart, center to center. The self-adjusting feature automatically adjusts the brakes after the initial installation.  Uses 10" Hub/Drums.
Nuts-6-17
Washers-5-8 sold separately

These components have passed the CSA Standard CAN3-D313-M85 For Trailer Running Gear, a stringent standard mandated by the Government to assure brake effectiveness and structural integrity of the components.
ISO/TS 16949:2002 certified

• Fits standard 3,500lb axle with a 4 bolt pattern on the mounting flange.
• Right Hand(passenger's side)
• Self-adjusting
• Complete assembly ready to bolt on and wire
• For use with a 10" inside diameter drum
• The shoes are 2 1/4" wide
• Mounting hardware included

EB01-108
