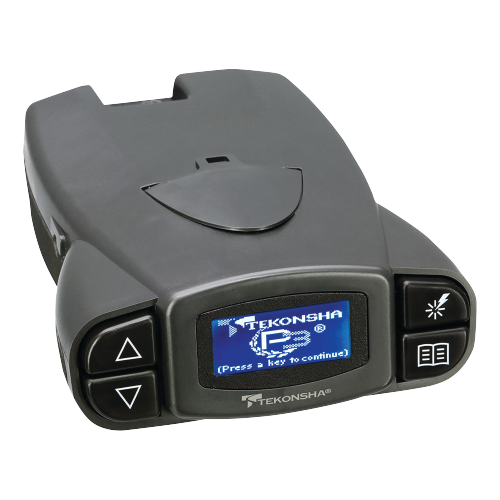

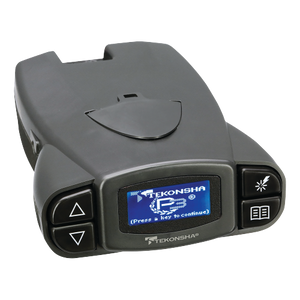

The large buttons and colored LCD display on this proportional brake controller make it easy to see and easy to use. Store and customize your settings so you can easily swap out trailers and drivers and get towing.

Features:

• Brake controller activates trailer brakes in proportion to your vehicle's braking action
  • Automatically adjusts trailer's braking based on deceleration of tow vehicle
• Large, accessible buttons make it easy to operate the controller
  • Switch between 3 different levels of boost, adjust braking output, and navigate the menu
• Handy rotary-style lever on the underside of the module keeps the manual override within easy reach
• Easy to swap out different trailers - great for a fleet
  • Save up to 5 trailer profiles to make it quick and easy to swap trailers or drivers
  • Store boost level, brake output, brake type, and display and language preferences
• Customizable, easy-to-read LCD display gives you braking status at a glance
  • Color and contrast can be personalized to give you the right setting to make it easy for you to read
• Built-in safeguards protect your vehicle, trailer, and the controller
  • Runs continuous diagnostic checks to alert you to problems as they come up
  • Minimizes drain on car battery by drawing only 3.6 milliamps when not in use
  • Prevents trailer brakes from overheating by reducing power output during prolonged stops
  • Defends brake controller and trailer breakaway systems against shorts
• Automatic leveling lets you mount at any angle up and down for an easy installation
  • Controller must be parallel with direction of travel and horizontally level
  • Included harness hardwires to vehicle and plugs into controller
  • Plug-in, vehicle-specific adapter (sold separately) available for select vehicles to reduce installation time
• Quick-disconnect feature lets you easily remove and store the controller when you don't need it
  • Replacement wiring harness (sold separately) and replacement bracket (TK5906 - sold separately) required to swap controller between vehicles

Specs:

• Application: trailers with up to 4 axles (8 brake assemblies)
  • Compatible with electric or electric-over-hydraulic trailer brakes
• Overall dimensions: 5" long x 3-1/2" wide x 1-3/8" tall
• LCD display dimensions: 1-3/16" wide x 9/16" tall
• Mounting range: 360 degrees vertically
