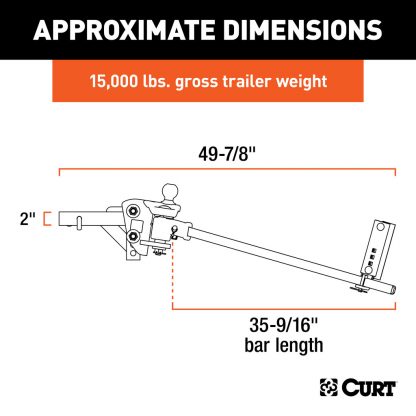

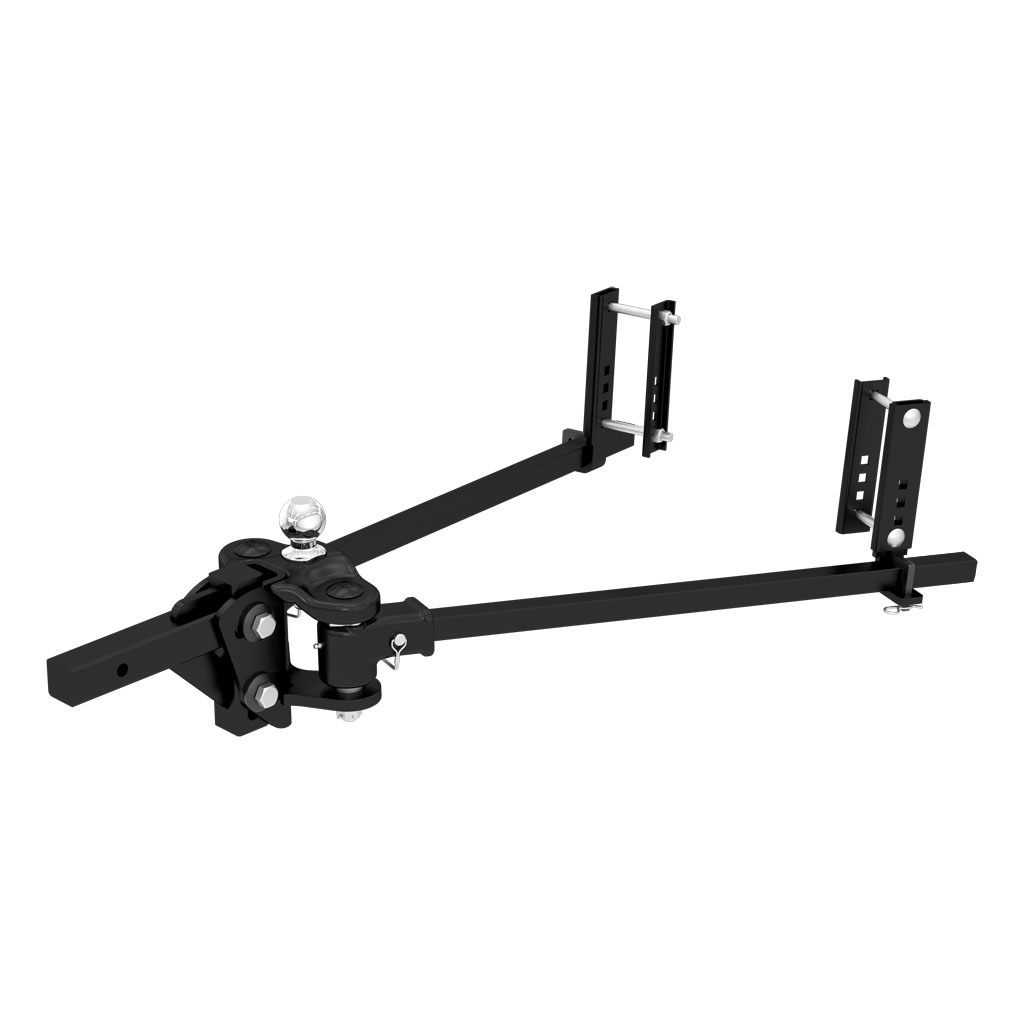

CURT TruTrack Trunnion Bar Weight Distribution Systems (10K – 15K lbs., 35-9/16″ Bars) – 18-Pack #17501020

$17,278.50

Add to CompareAdded
SKU: 612314027323 Category:

Description

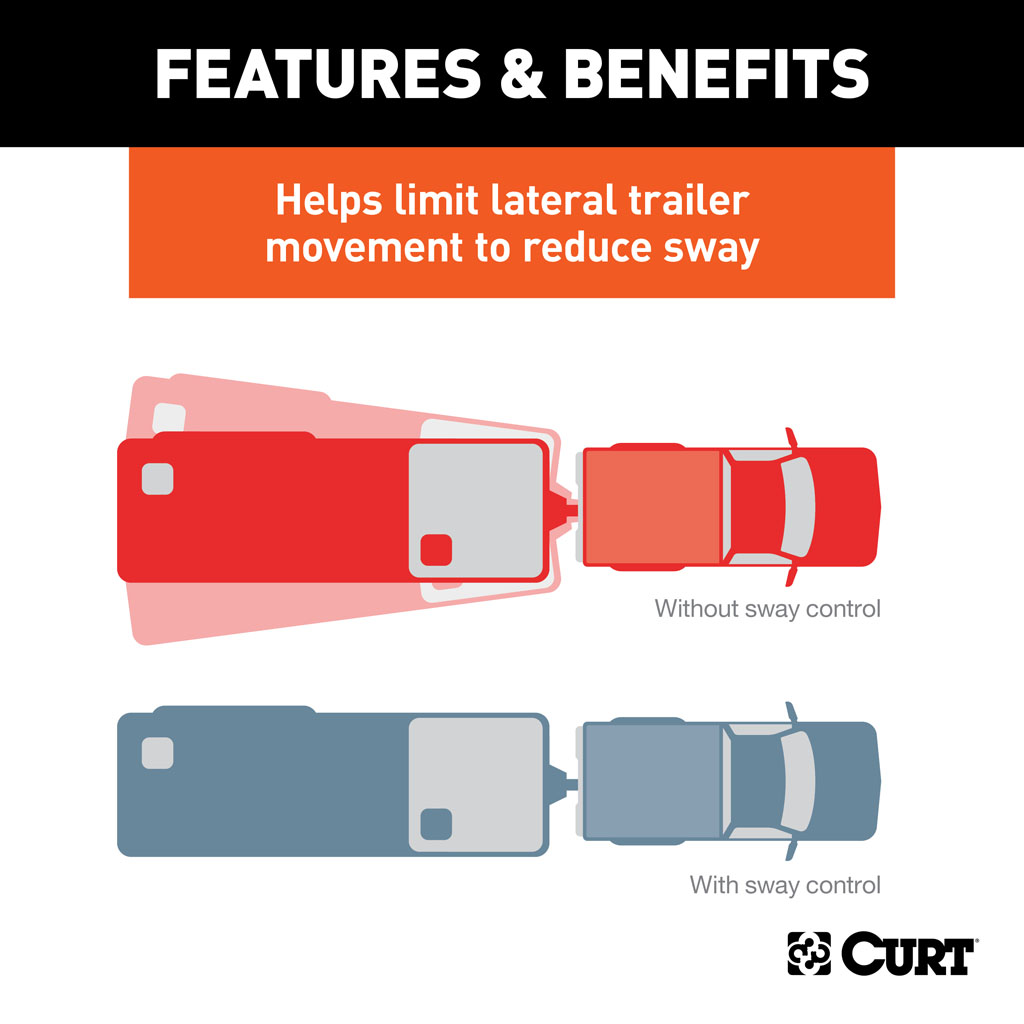

While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack™ is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with integrated sway control to deliver the smoothest, safest ride possible.

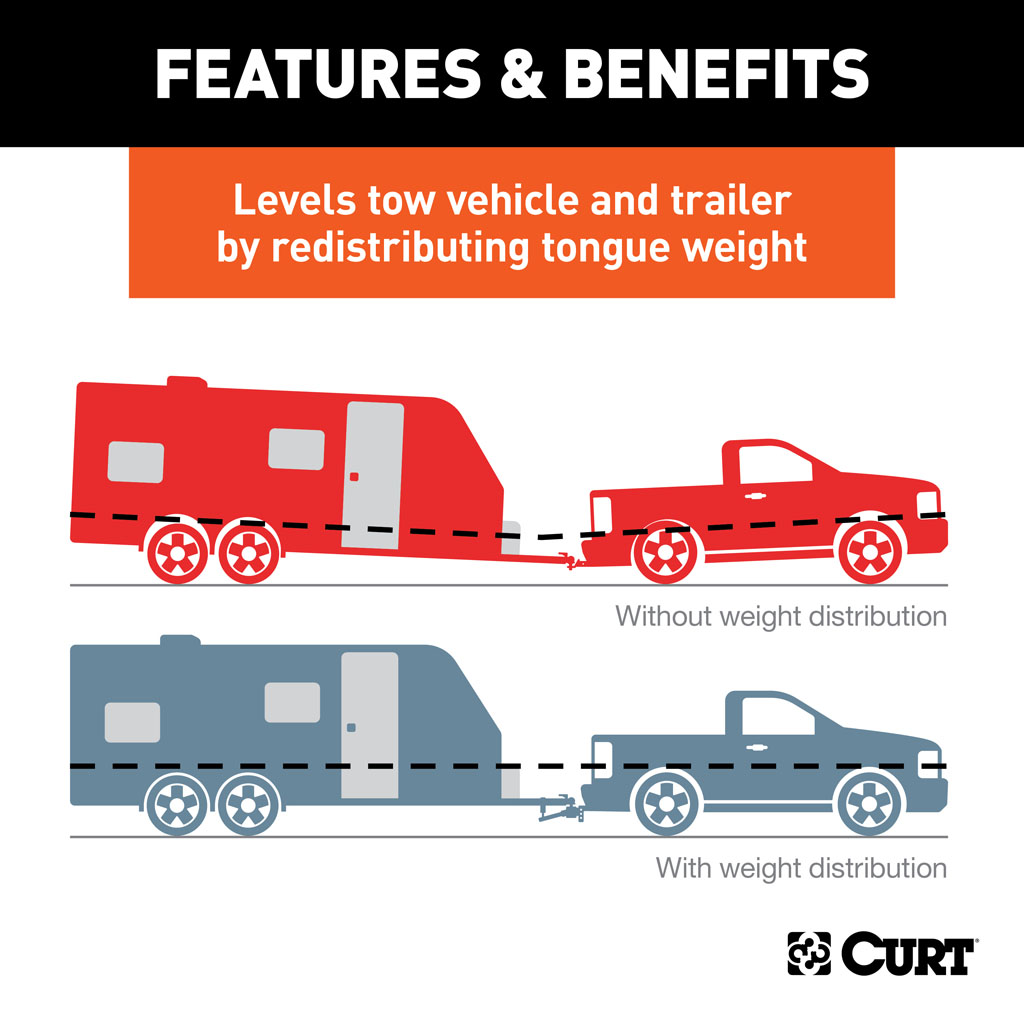

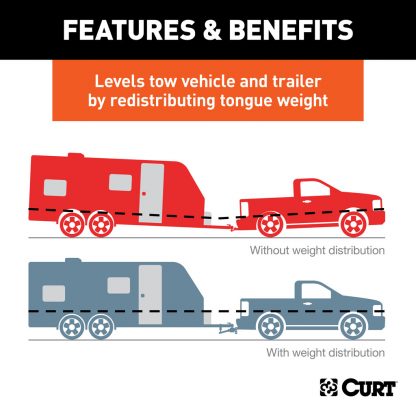

The TruTrack™ features a unique spring and cam system within the hitch head that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened cam components are less subject to wear and last longer than competitor models. The TruTrack™ also features unique spring bars. Like all WD hitches, it uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack™ connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned.

In addition to its integrated sway control, the CURT TruTrack™ offers the same great quality as our other WD hitches, making it the perfect choice for campers, livestock trailers and other heavy-duty trailers. We stand behind this uncompromising hitch, and to prove it, we back it up with a limited lifetime warranty.

NOTE: This package includes 18 TruTrack weight distribution hitches.

Details

Shipping Weight: 2160.000
Material: Blank
Finish: Blank

Notes

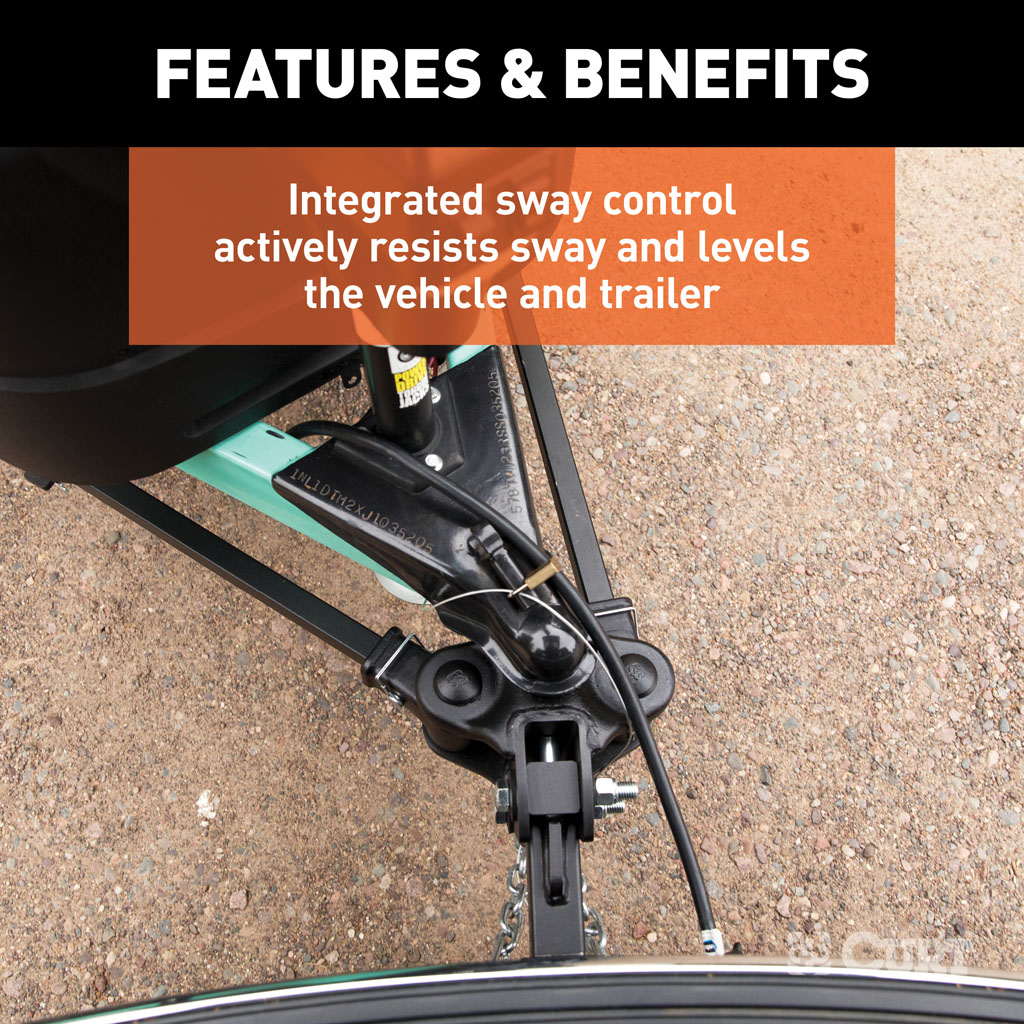

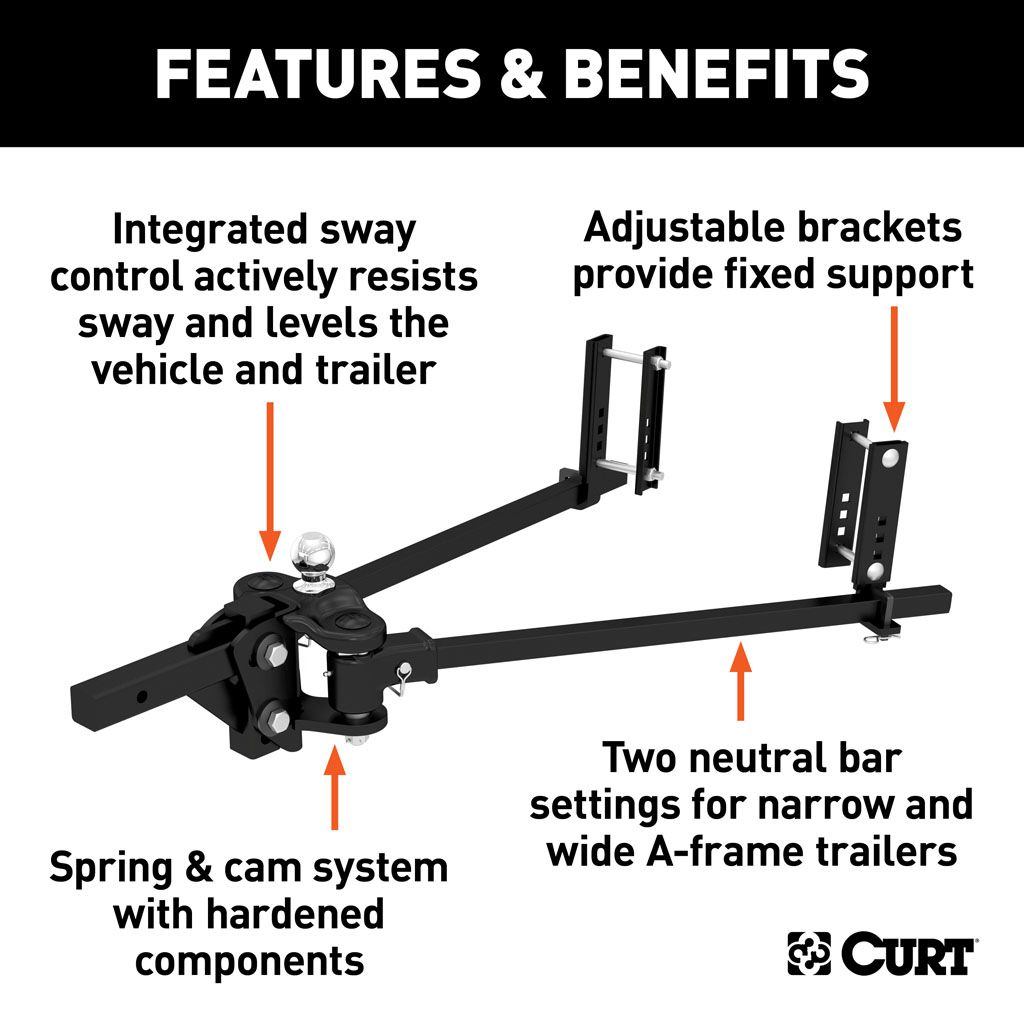

  • Integrated sway control actively resists sway and levels the vehicle and trailer
  • Welded head with cast pieces provides solid spring bar attachment

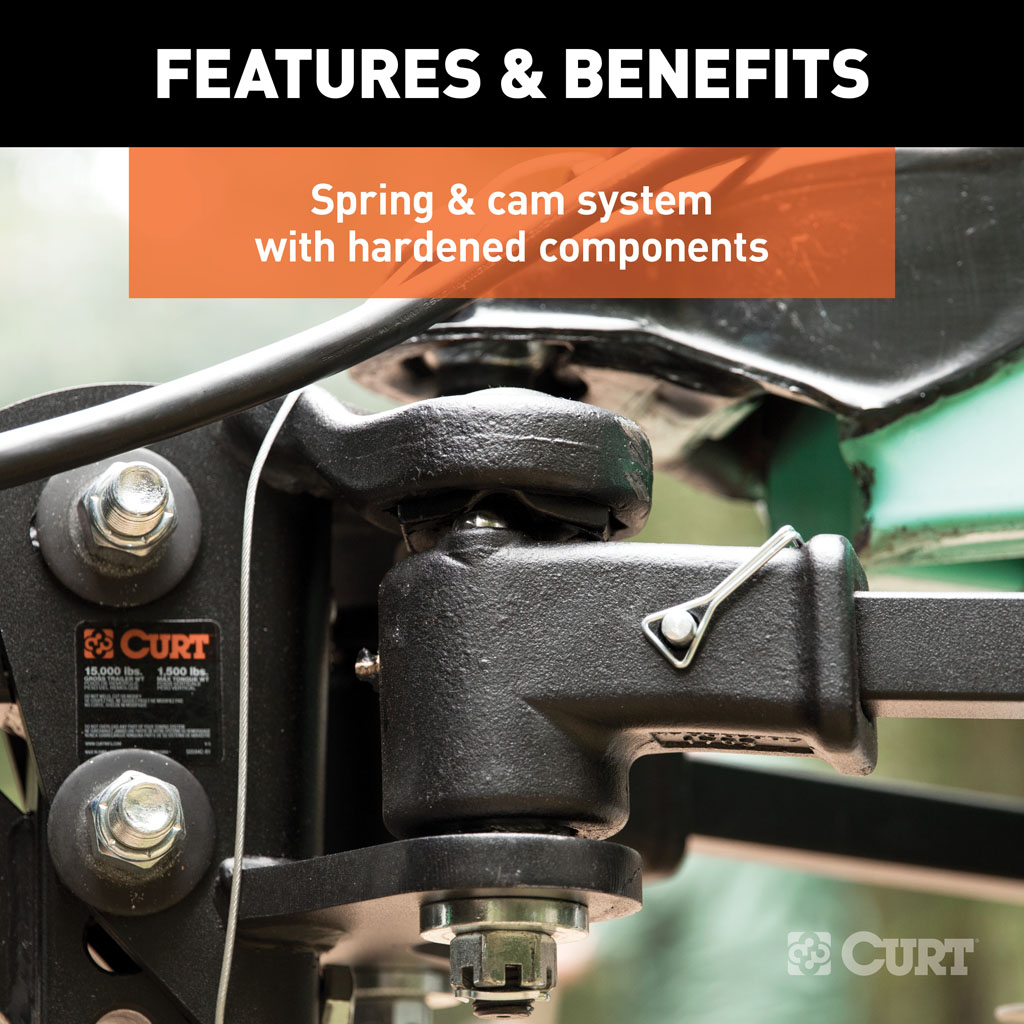

  • Uses spring & cam system with hardened components, instead of metal friction

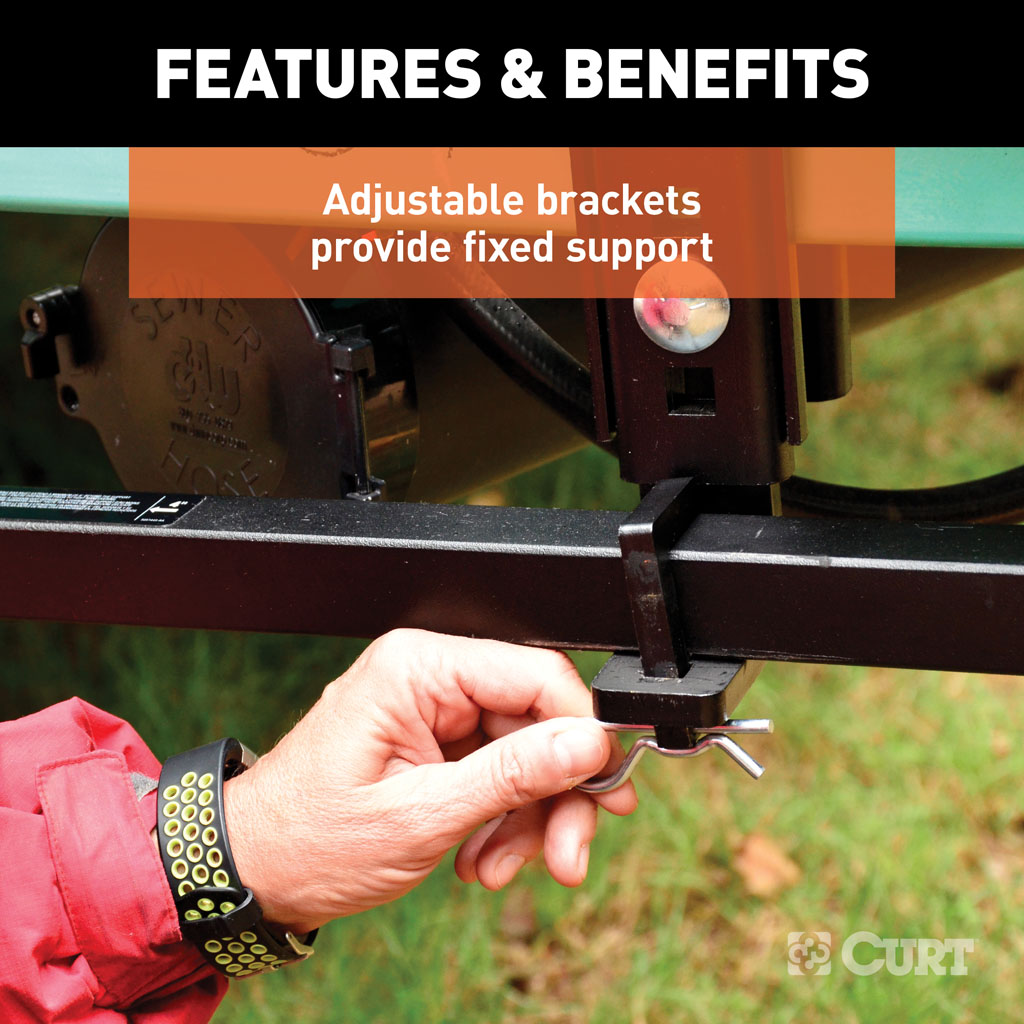

  • Adjustable brackets provide fixed support unlike spring bar chain models
  • Brackets use friction to resist lateral movement, replacing a sway control
  • Equipped with trunnion-style, forged steel spring bars
  • 2" shank can be flipped to provide necessary drop or rise
  • Hex castle nut allows for easy adjustment for different trailers

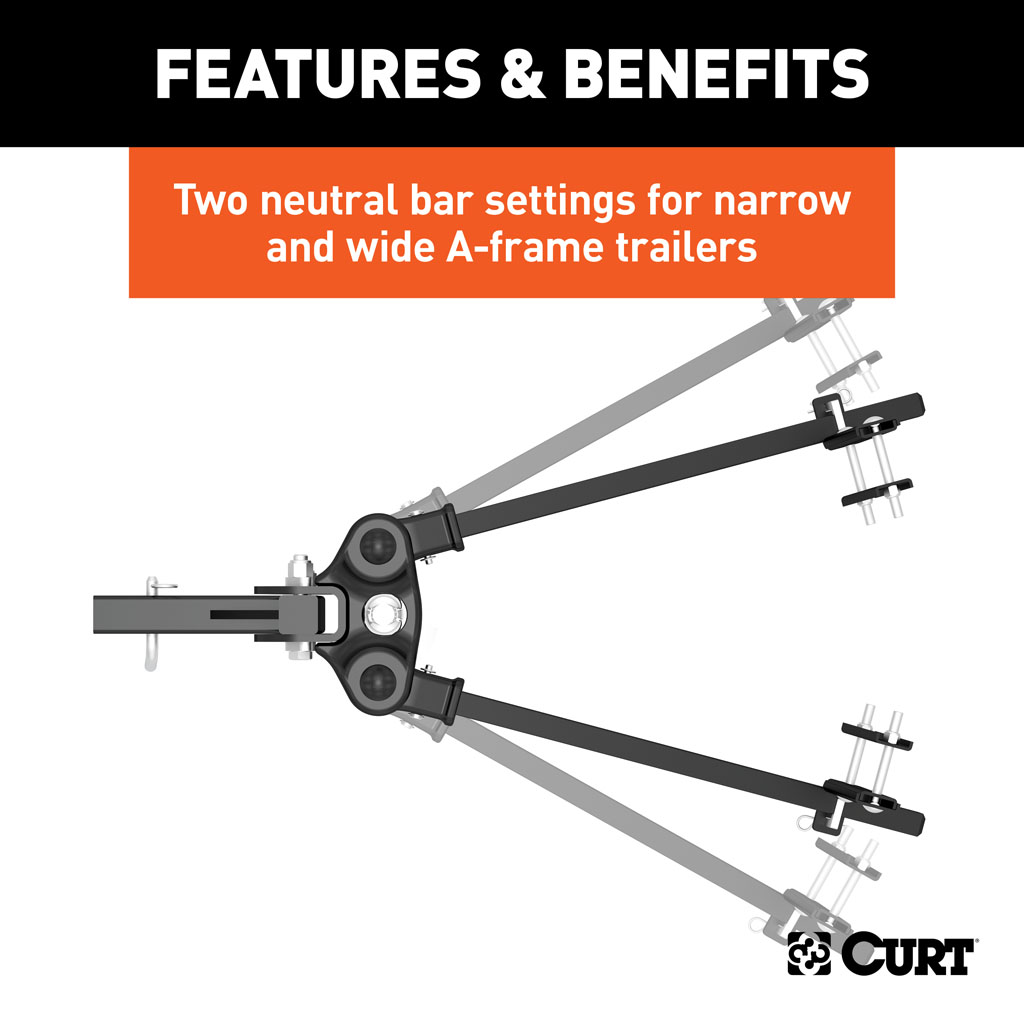

  • Two neutral bar settings for narrow and wide A-frame trailers
  • Durable carbide powder coat finish and industrial chrome-plated cam components
  • Includes a pre-torqued 2-5/16" trailer ball
  • Limited lifetime warranty (one-year finish, one-year parts)

Additional

  • Includes 18 weight distribution hitch kits
  • Lowest hole in shank cannot be used in drop position
  • Capacity limited to lowest rated towing component
