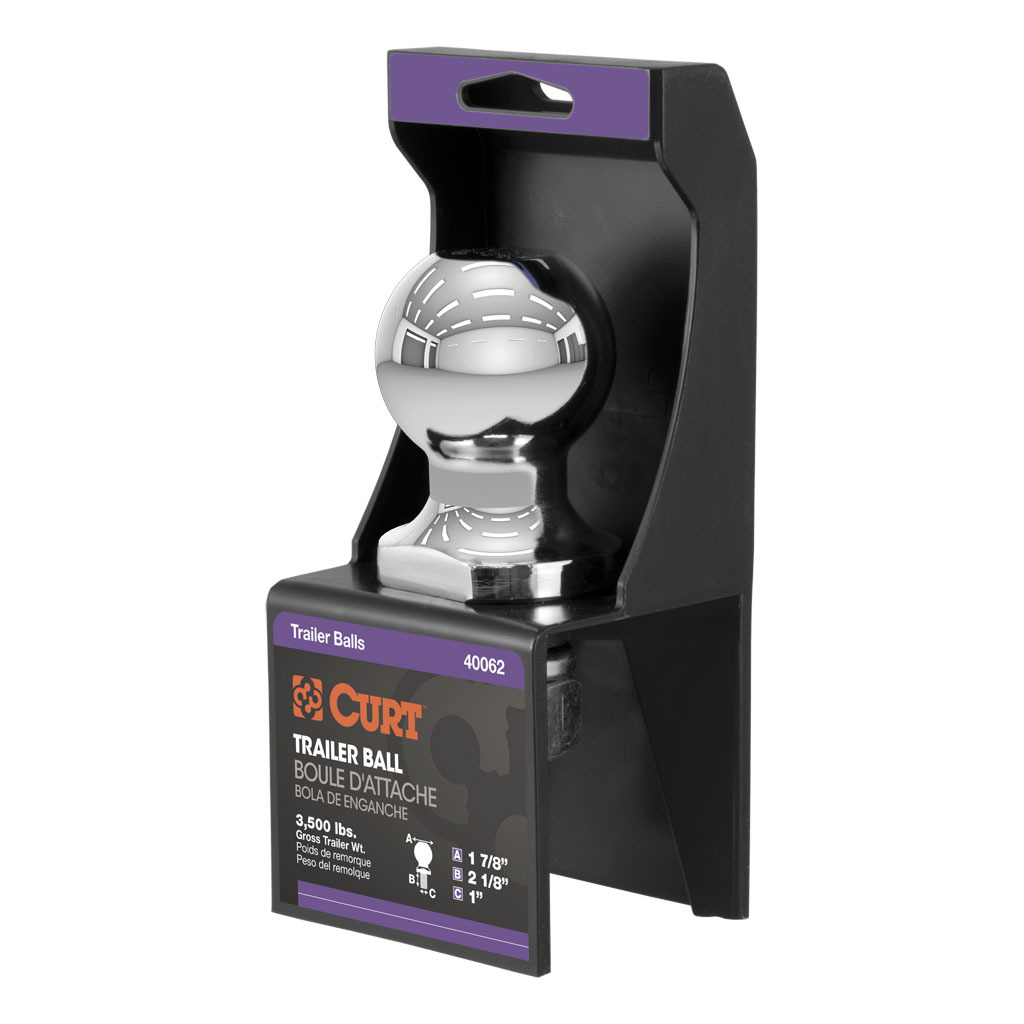

CURT Trailer Ball #40062

$13.47

Add to CompareAdded
SKU: 612314162000 Category:

Description

CURT 1 7/8″ trailer balls are constructed from high-strength steel to match the towing power of your class 1 or class 2 trailer hitch and ball mount and come with fine threads on the shank for improved holding strength. Having a trailer ball that matches your coupler size is absolutely essential. At CURT, our trailer balls are engineered to be precisely fitted. When we stamp 1 7/8″ into the top of each hitch ball, we actually mean 1 7/8″.

This CURT tow ball features a ball capacity of 3,500 lbs. It is able to tow most utility trailers, boat trailers, campers, smaller livestock trailers and some recreational vehicle haulers (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). As with any trailer, be sure that your towing equipment is capable of handling the load before hitching up. This trailer ball also features a 1″ shank diameter, a 2 1/8″ shank length, 0″ of rise and a nickel-chrome finish to protect against corrosion and wear. Like all CURT trailer balls, our 1 7/8″ balls are tested for your safety and meet all U.S. VESC specifications.

Details

Shipping Weight: 3.000
Product Type Description: 1 7/8" Trailer Ball
Warranty: One Year Limited
Ball Capacity: 3500
Ball Diameter: 1.875
Shank Diameter: 1
Shank Length: 2 1/8 IN
Shank Rise: 0 IN
Torque: 250 FT LB
Finish: Chrome
color: Silver

Notes

  • Fits 1 7/8" couplers and accepts up to 3,500 lbs. GTW
  • Constructed from high-strength, hot-forged steel
  • Protected by a durable chrome-plated finish
  • Zinc-plated hex nut and helical lock washer for secure mounting
  • Features fine threads for superior holding strength
  • Tested for safety to meet U.S. VESC V-5 specifications

Additional

  • The mounting platform must be at least 3/8" thick, and the hole size must not be more than 1/16" larger in diameter than the threaded shank
