Description

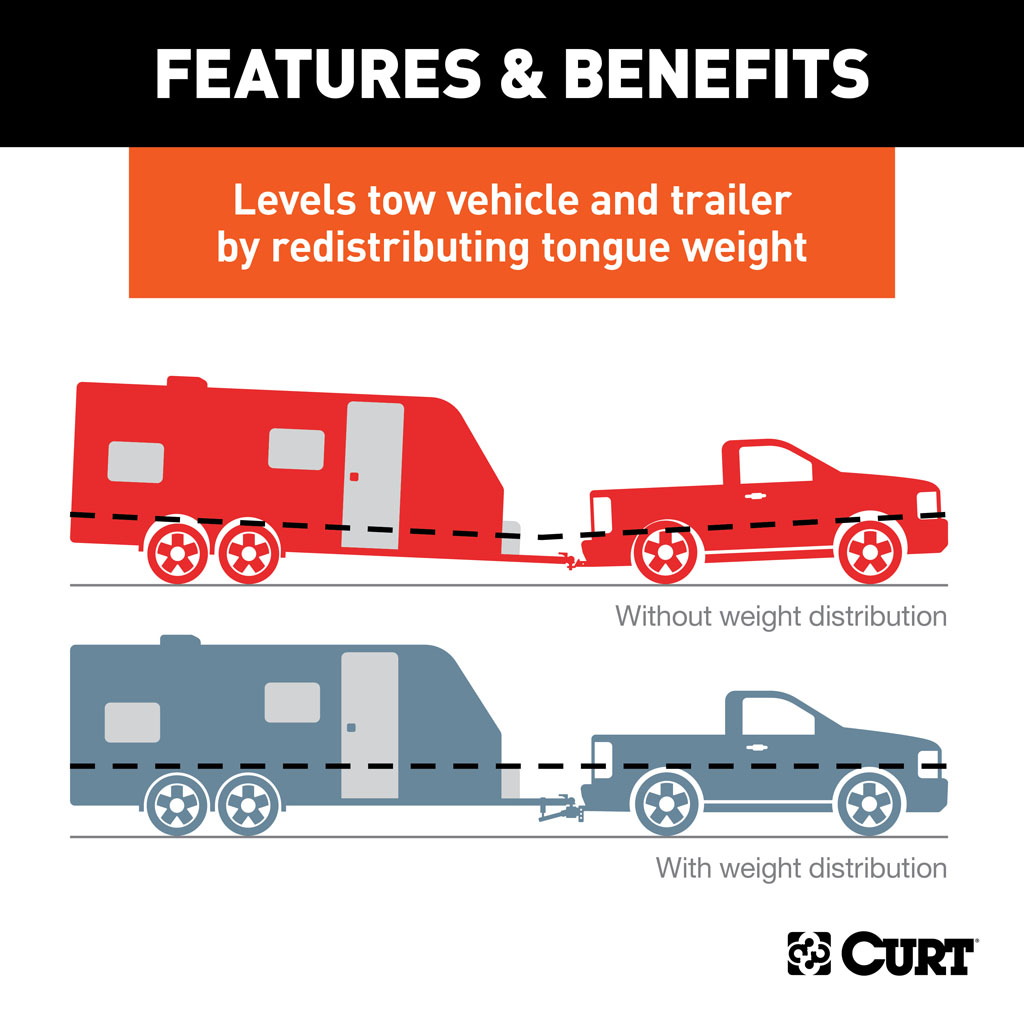

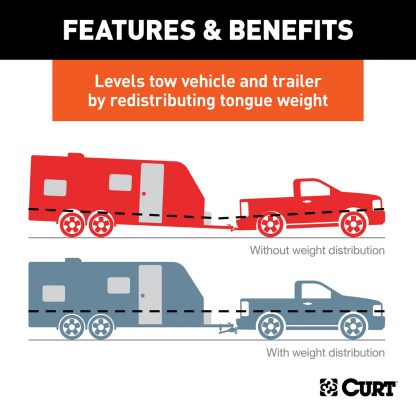

CURT weight distribution hitches are specialized towing systems that provide improved vehicle and trailer control by leveling the trailer and more evenly distributing its tongue weight across the trailer’s and vehicle’s axles. Weight distribution hitches are commonly used on travel trailers and campers but can also be applied to other large loads.

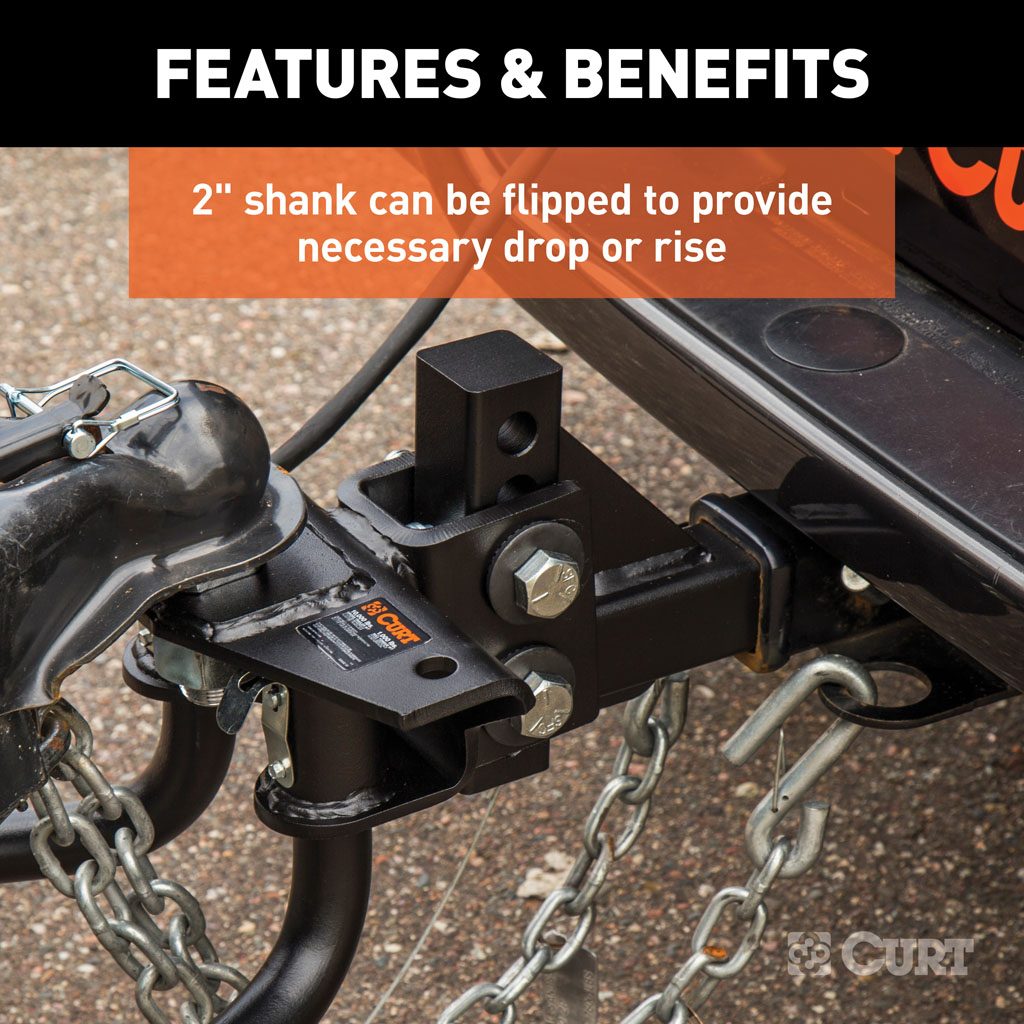

CURT WD hitches come with a 2″ x 2″ shank and are compatible with class 3, 4 and most 5 trailer hitches, including Xtra Duty and Commercial Duty (2-1/2″ replacement WD shank may be required), as well as some RV trailer hitches. While a weight distribution hitch will increase the gross trailer weight capacity of most trailer hitches, the vehicle’s weight carrying capacity must be taken into consideration before towing a heavier trailer (NOTE: Never exceed the lowest weight capacity of any towing component).

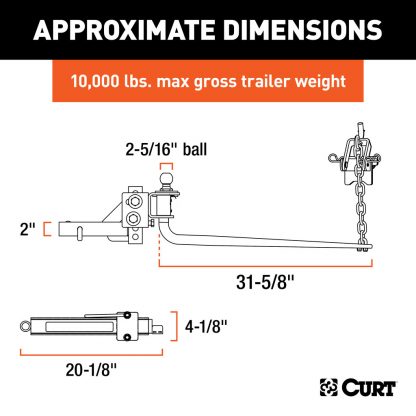

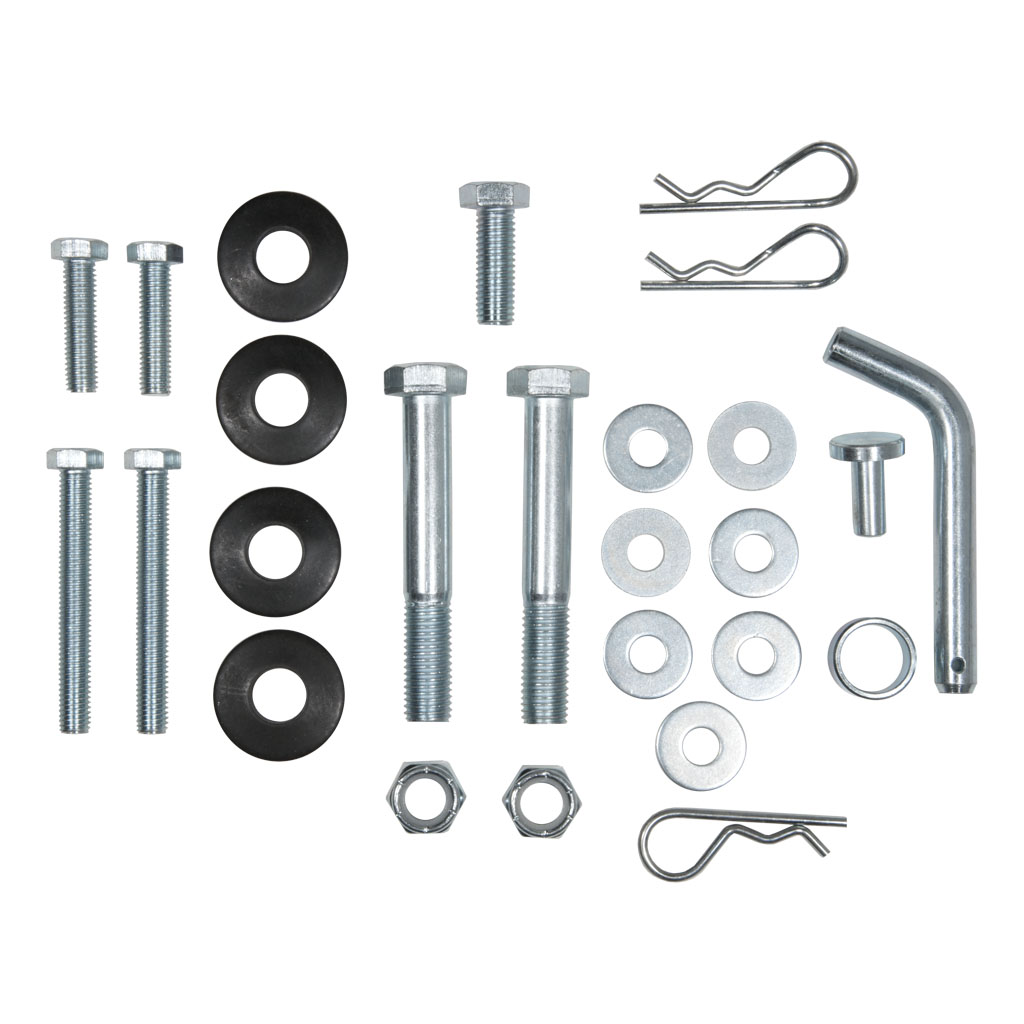

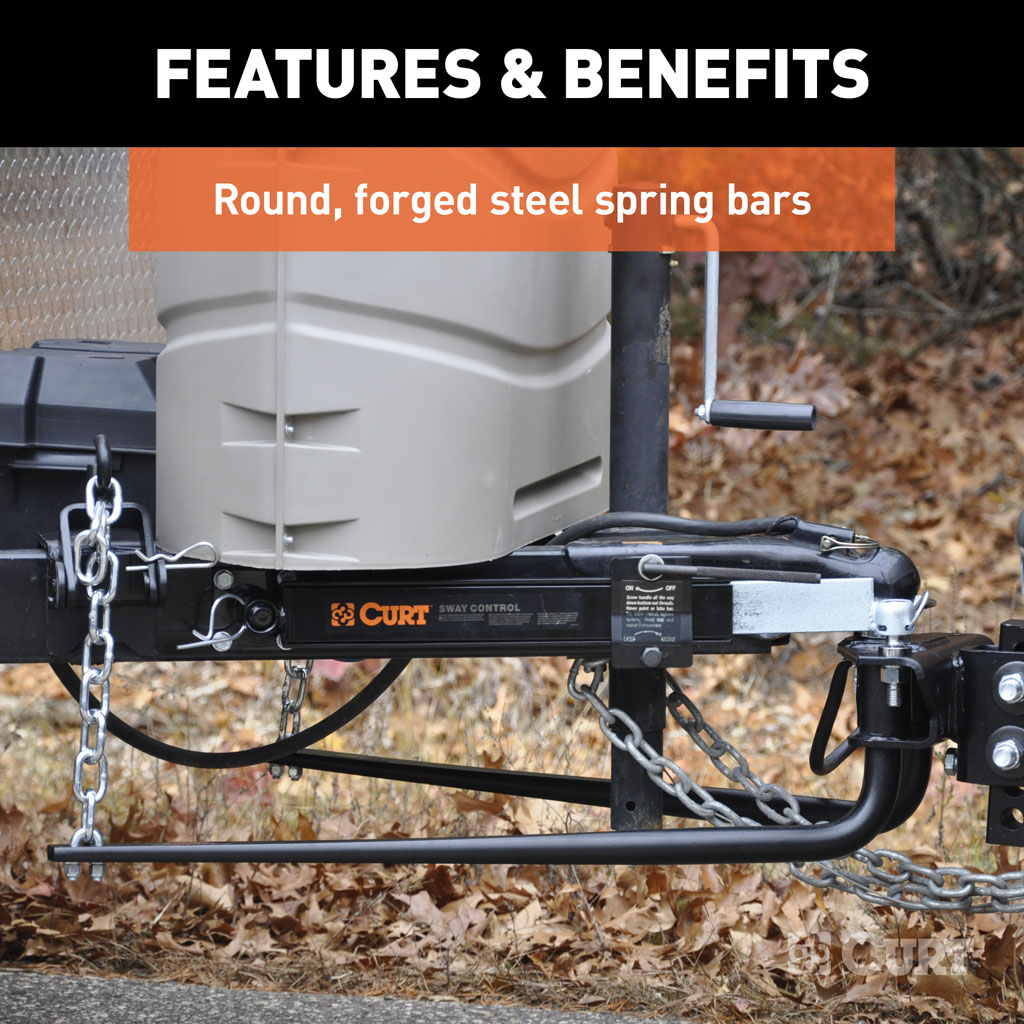

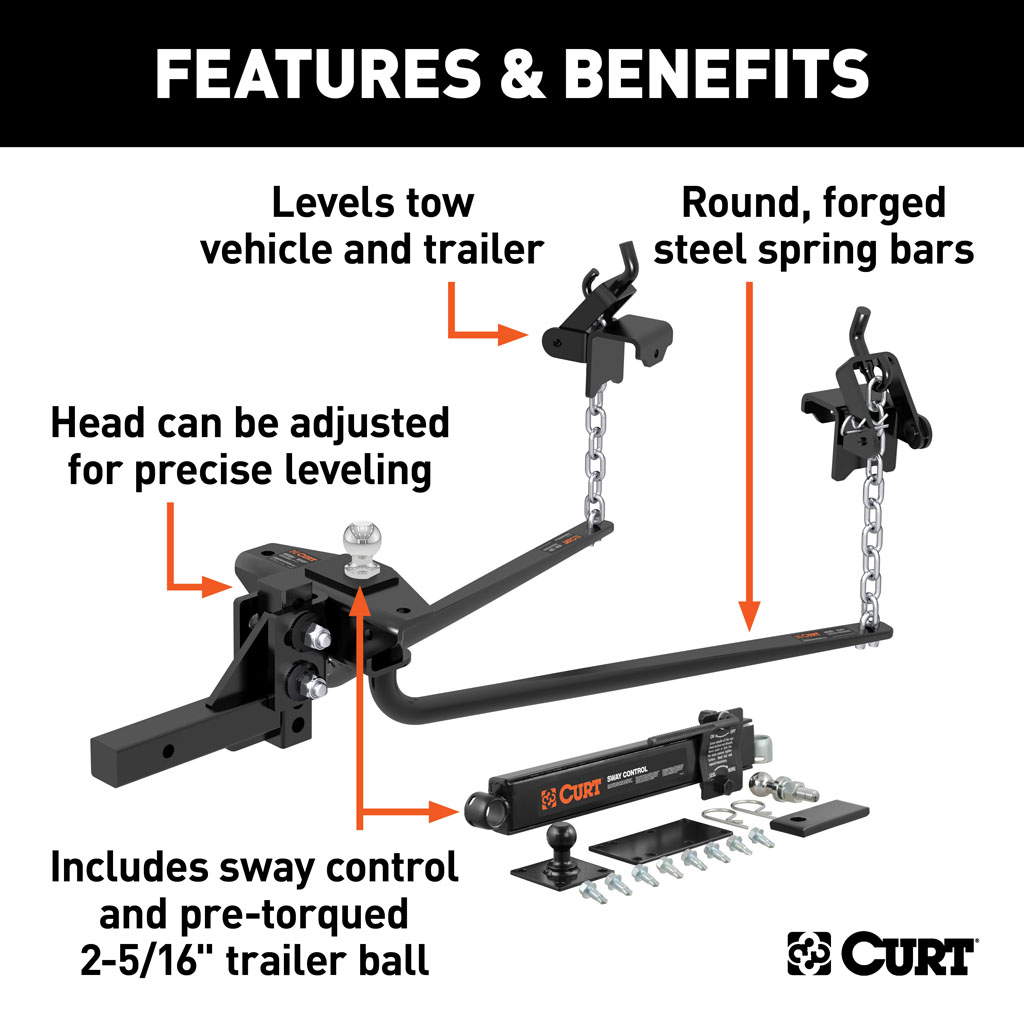

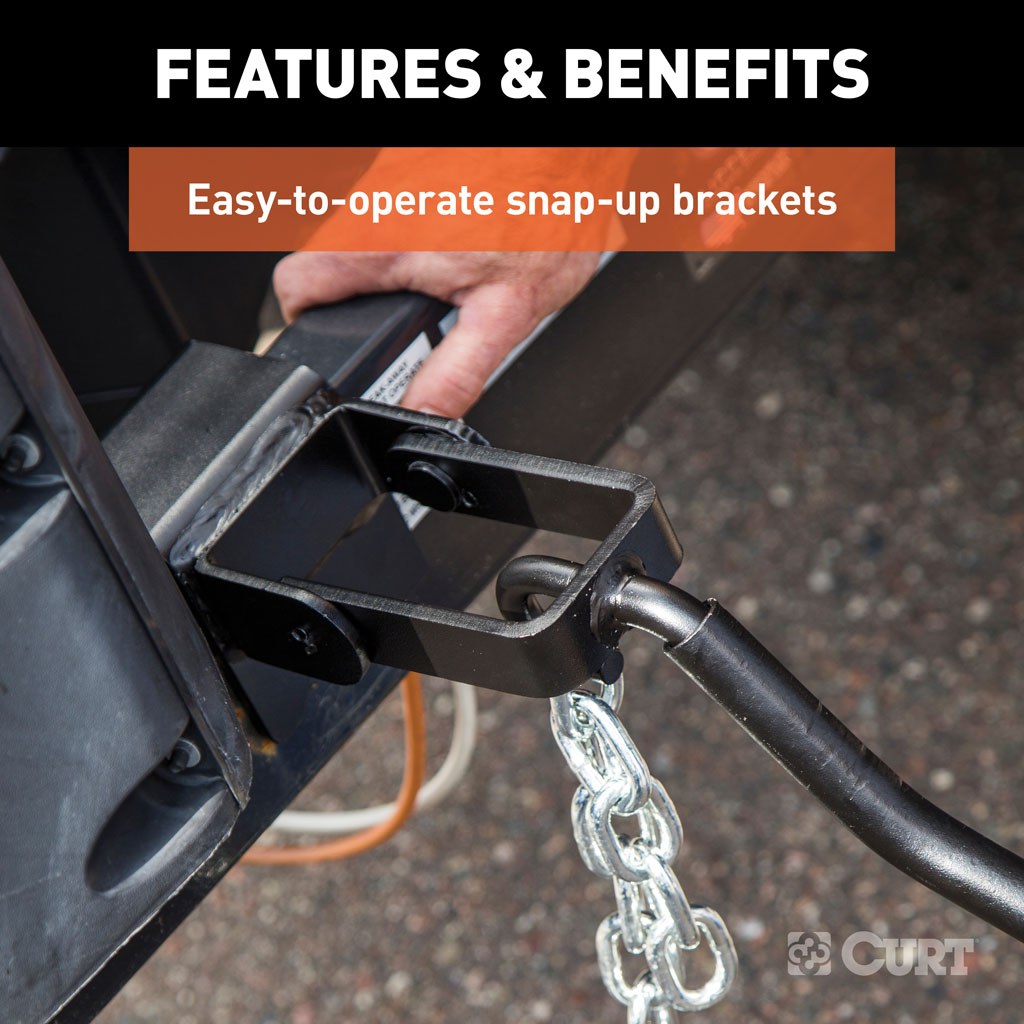

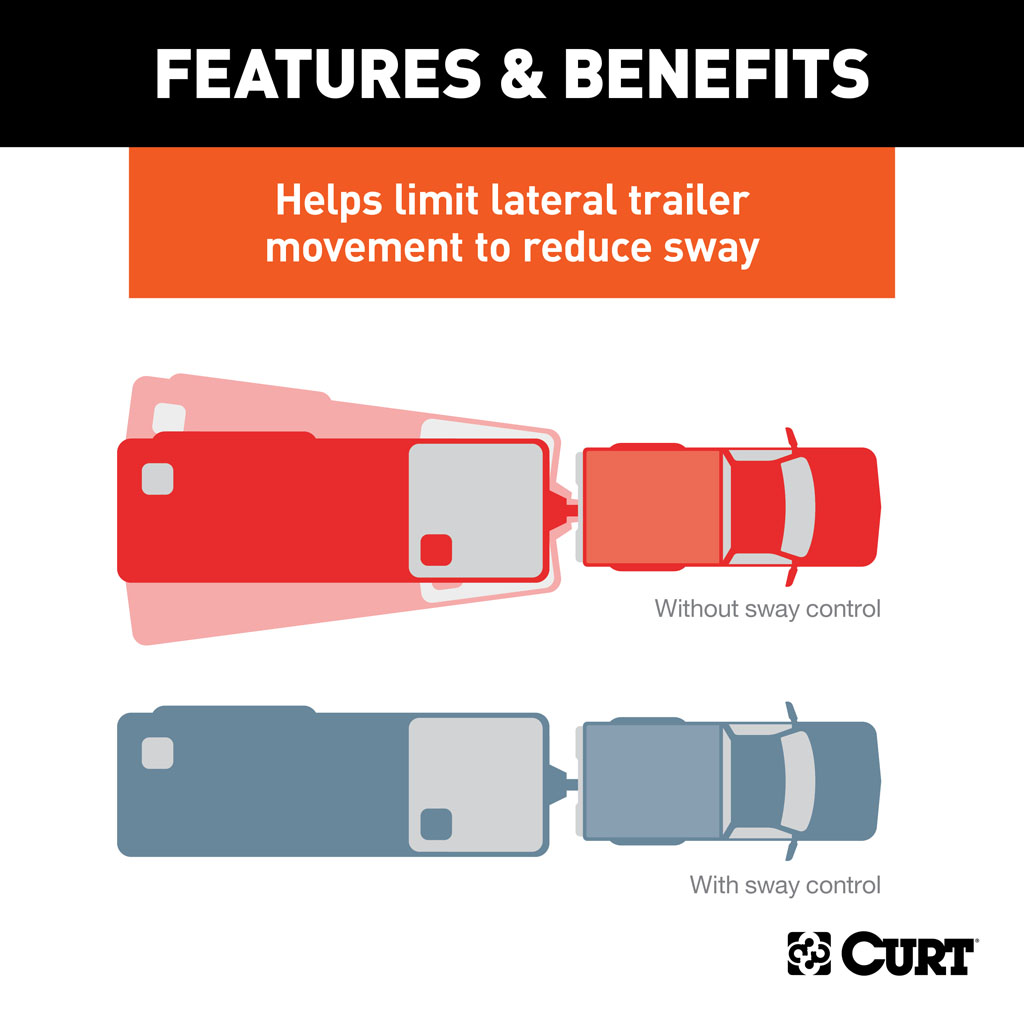

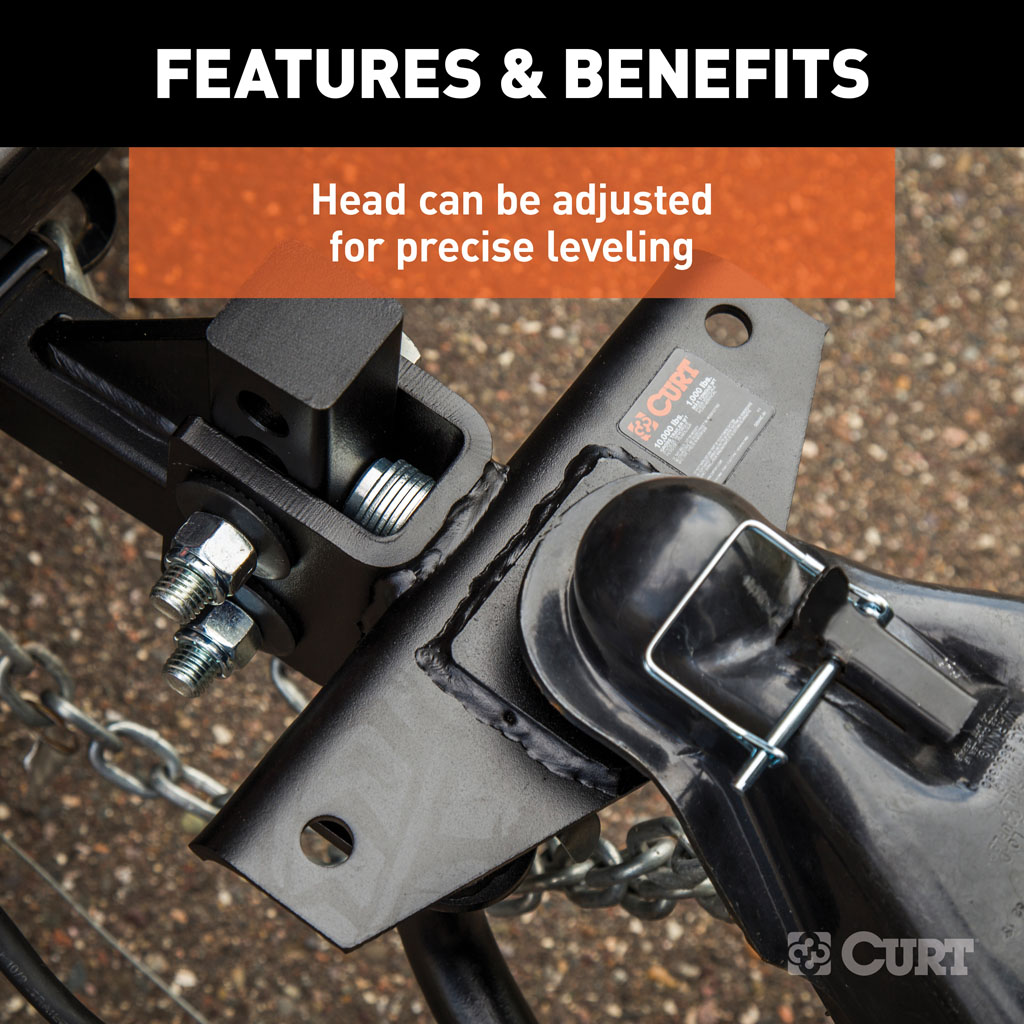

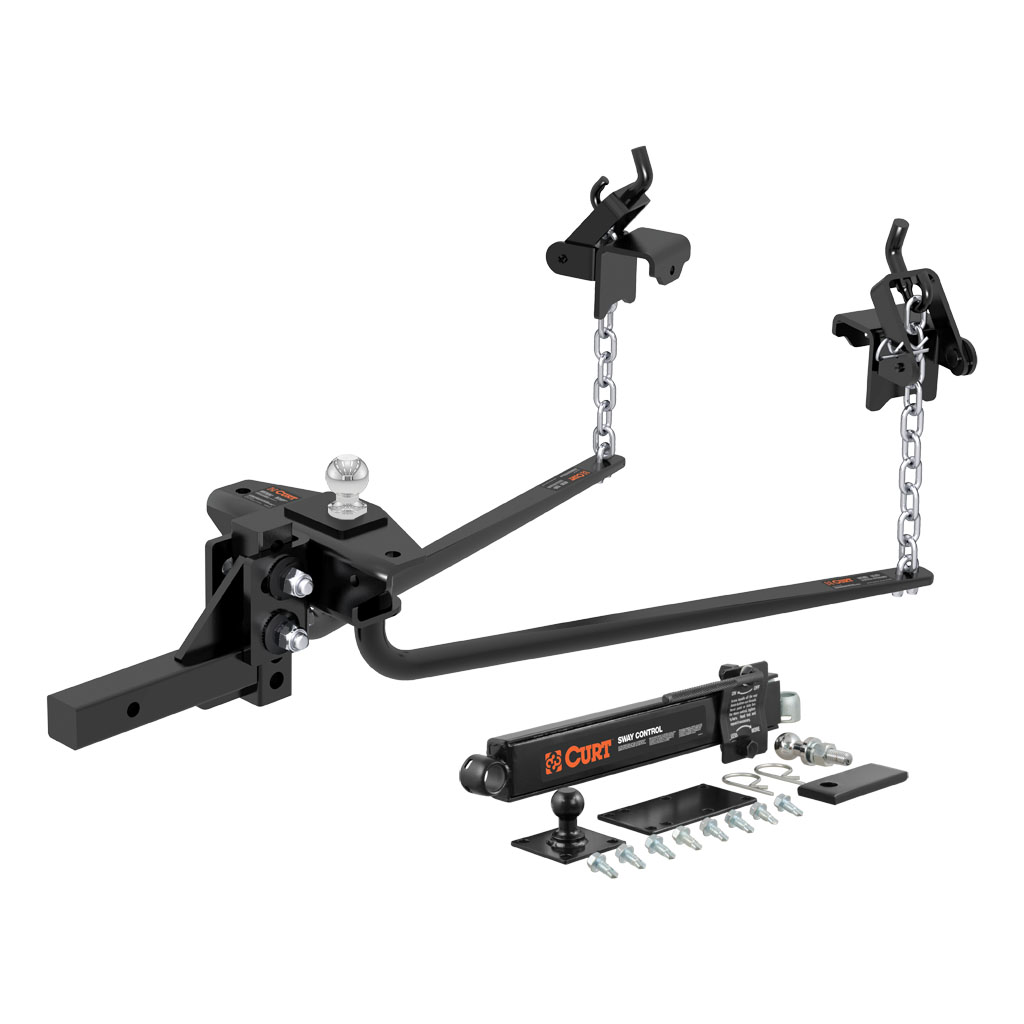

These round bar weight distribution hitches feature a heavy-duty formed head and round spring bars constructed from forged steel. They offer a gross trailer weight capacity up to 10,000 lbs. and a tongue weight capacity of 1,000 lbs. Each kit also includes hook-up brackets, spring bar safety chains, a trailer ball and a pin and clip. To protect these hitches from scratching, chipping, rust and UV damage, they also come with a durable black powder coat finish. For added sway control, these weight distribution hitches include sway control units. While weight distribution hitches are an effective solution for stabilizing and leveling out your towing rig, they should not be considered a sway control. However, when combined with a CURT sway control kit, the WD hitch maximizes its effectiveness in controlling sway. Each sway control kit includes a sway control unit, trailer balls to attach to the trailer and hitch, a reinforcement plate and attachment clips.
