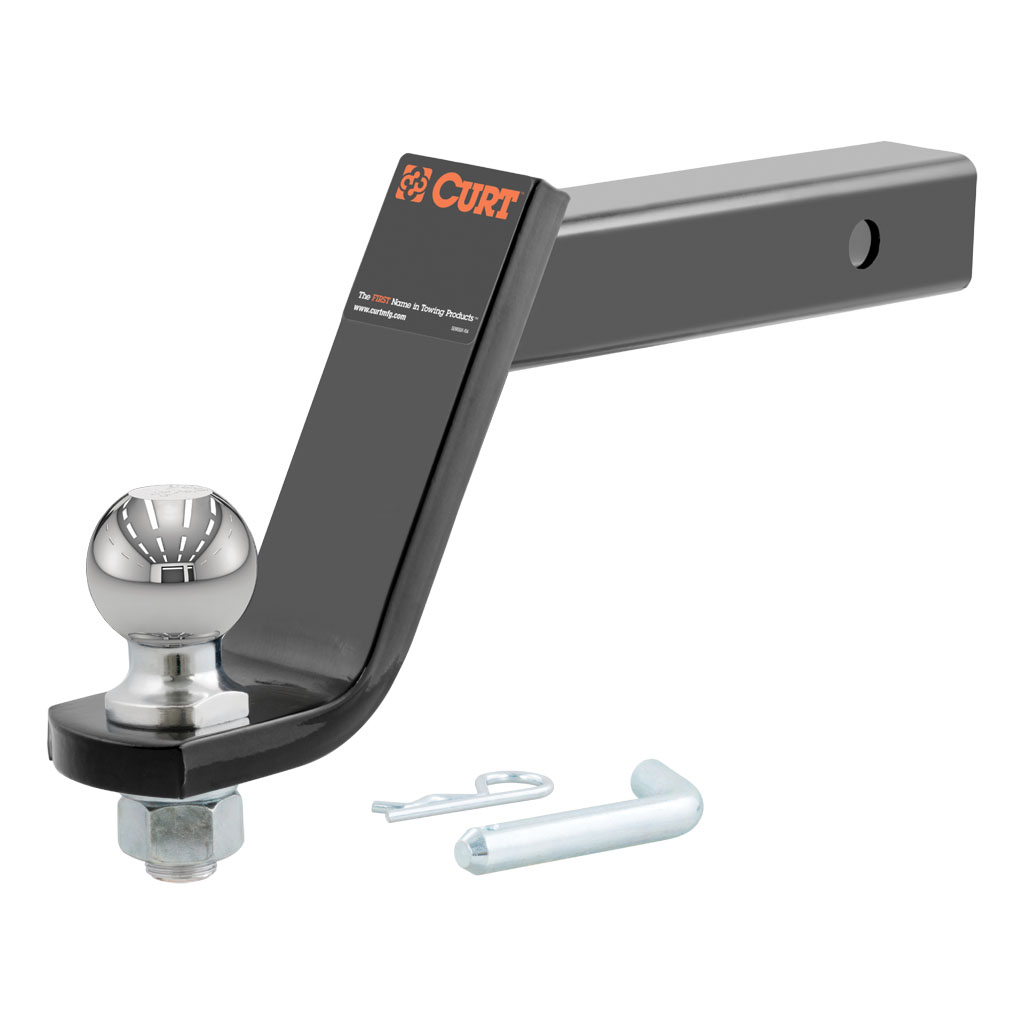

CURT Loaded Ball Mount with 2-5/16″ Ball (2″ Shank, 7,500 lbs., 6″ Drop) #45065

$52.56

Add to CompareAdded
SKU: 612314450657 Category:

Description

When it comes to ball mounts, a CURT loaded ball mount is the complete package. These stingers come with all necessary towing components and are pre-fitted with a factory-torqued trailer ball, eliminating the need to mount and torque your own trailer ball. This means a loaded ball mount is ready for towing right out of the package! Each one also comes with a pin and clip for mounting the ball mount into the appropriate size receiver tube. CURT offers loaded ball mounts in a variety of styles and weight ratings.

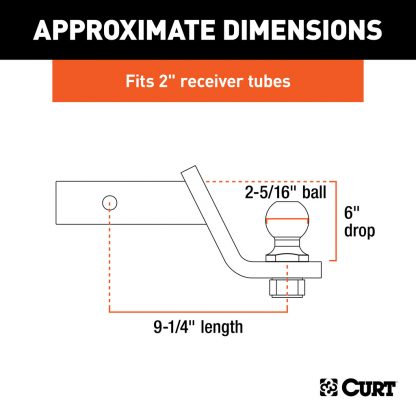

This CURT loaded ball mount features a gross trailer weight capacity of 7,500 lbs. and a tongue weight capacity of 750 lbs. It comes with a 2-5/16″ trailer ball, making it an excellent choice for towing most boat trailers, utility trailers, campers, livestock trailers and recreational vehicle trailers used for hauling dirt bikes, motorcycles and ATVs (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This ball mount also has a length of 9-1/4″, a drop of 6″ and comes with a gloss black powder coat finish to resist rust, chipping and UV damage. All CURT loaded ball mounts feature 2″ x 2″ shanks and are made with the same superior quality we put into each of our products.

Details

Tongue Weight(TW): 750 LB
Mount Type Description: Not Applicable
Gross Trailer Weight(GTW): 7,500 LB
Material: Carbon Steel
Finish: GLOSS BLACK POWDER COAT
Drop: 6 IN
Ball Diameter: 2.3125
Receiver Tube Size: 2
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Side Application Type Description: Not Applicable
Shipping Weight: 12.000

Notes

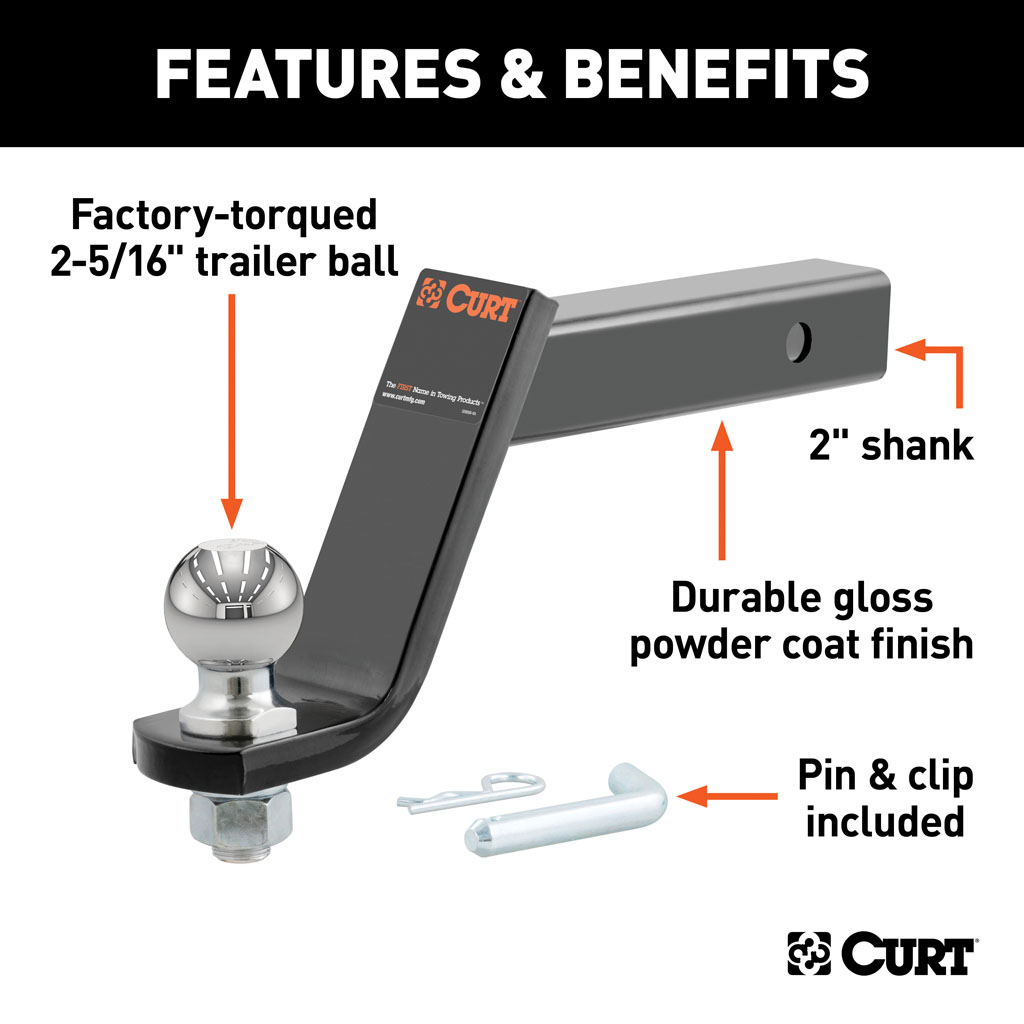

  • Rated to 7,500 lbs. gross trailer weight and 750 lbs. tongue weight

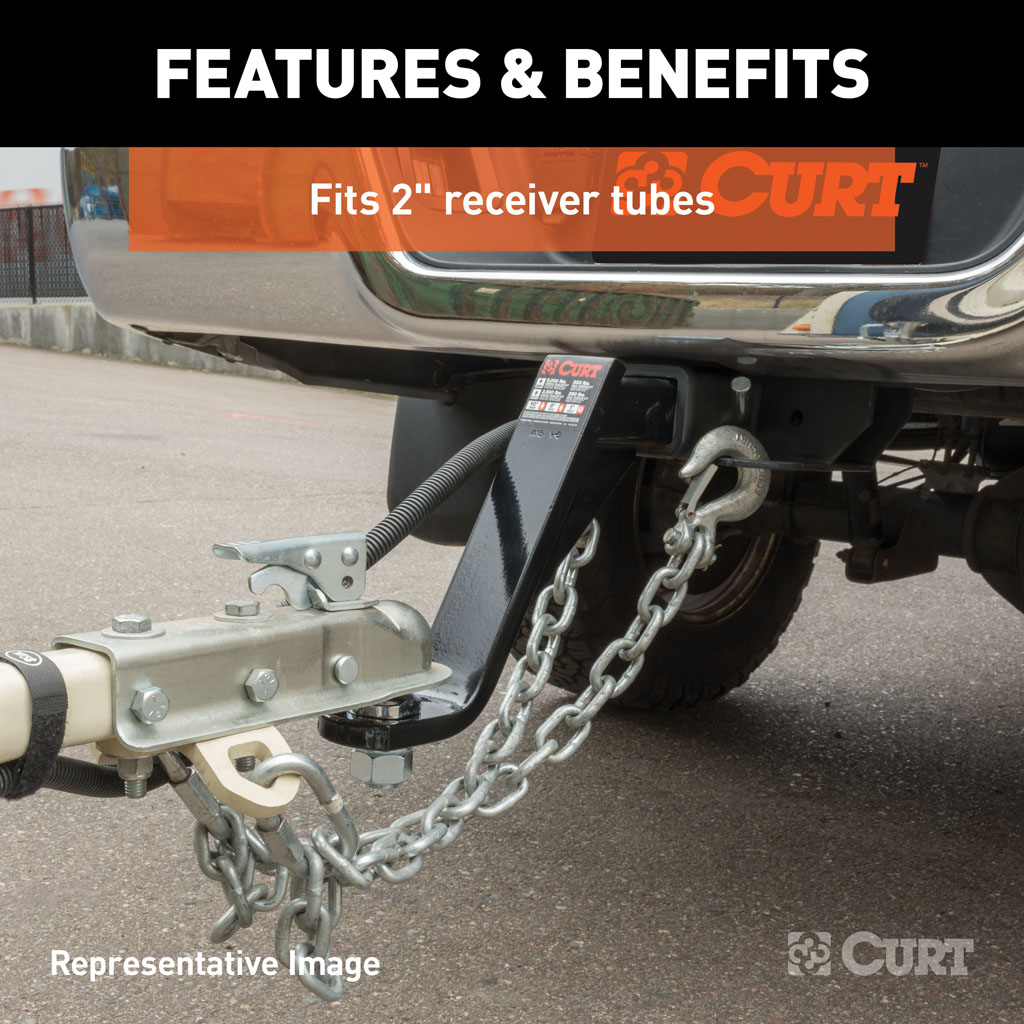

  • Fits trailer hitches with a 2" x 2" receiver tube opening

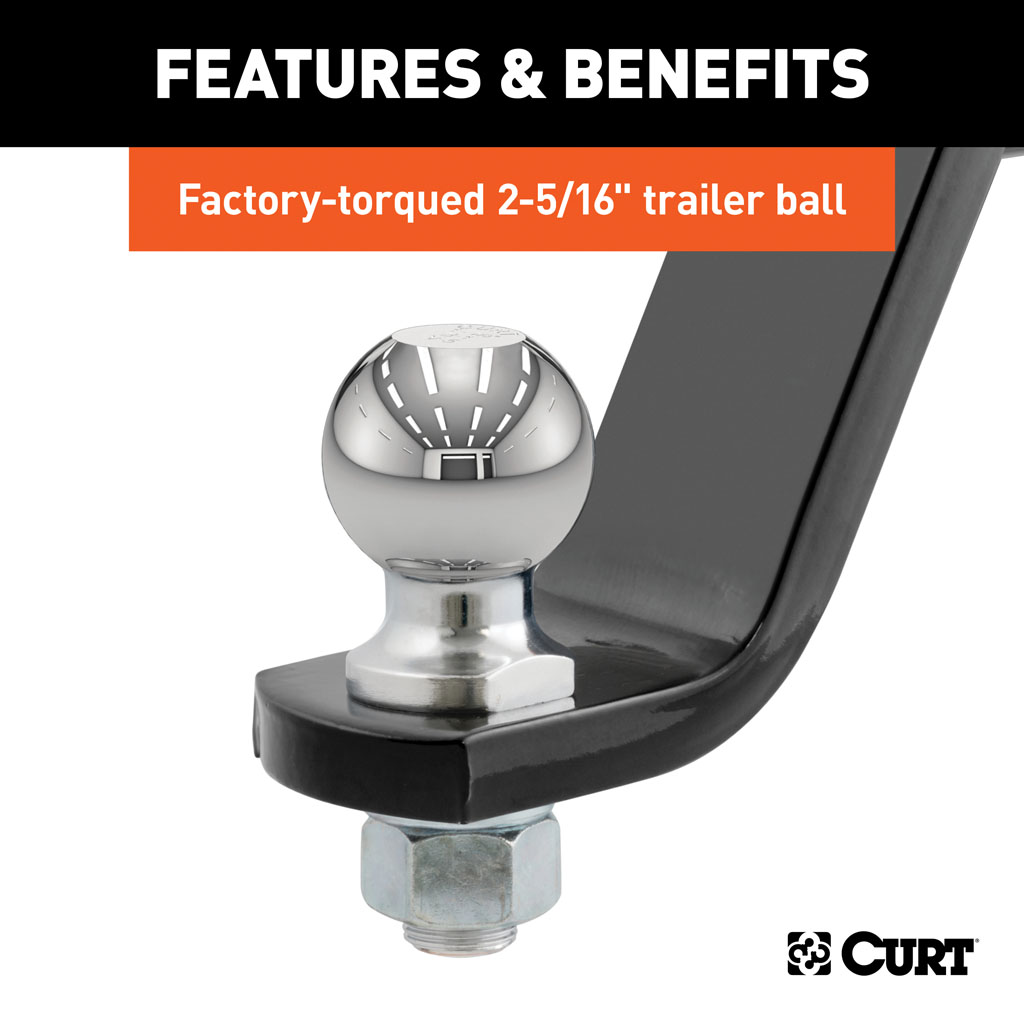

  • Factory-torqued CURT trailer ball accepts a 2-5/16" coupler
  • 6" drop for precise trailer leveling, particularly with larger trucks
  • Hollow shank weighs less and can be used with an anti-rattle kit
  • CNC-formed, robotically welded and mechanically descaled for a perfect fit
  • Protected by a durable powder coat finish
  • Trailer ball features a polished chrome-plated finish

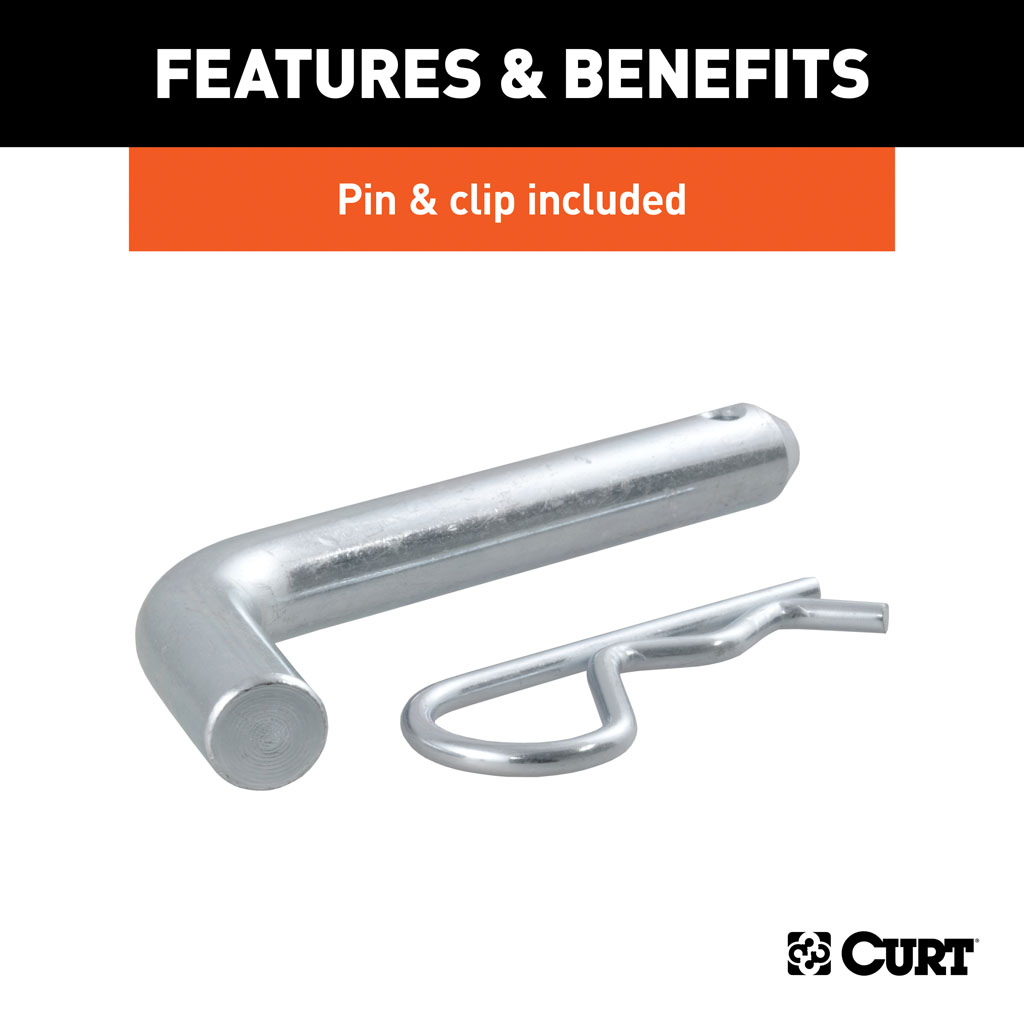

  • 5/8" hitch pin & clip for secure mounting in receiver tube
  • Assembled in USA
  • Limited lifetime warranty (one-year finish, one-year parts)

Additional

  • Includes 2-5/16" trailer ball #40005, pin & clip
