CURT Custom Wiring Harness (4-Way Flat Output) #56180

$65.57

Add to CompareAdded
SKU: 612314561803 Category:

Description

A CURT custom wiring harness (also called a T-connector) is a simple, plug-and-play electrical device that eliminates the need for cutting, splicing and soldering when installing vehicle-to-trailer wiring.

Most vehicles do not come ready to tow. Unless your vehicle has a towing package, it is probably not equipped with a trailer wiring connector. This is where CURT’s custom wiring harnesses come into play. Custom wiring harnesses plug into your vehicle’s electrical system using original equipment (OEM) connectors. Our custom wiring harnesses use two or more OEM connectors to plug in at the taillight assembly and provide a standard trailer socket to allow a trailer to be plugged into your vehicle’s power system.

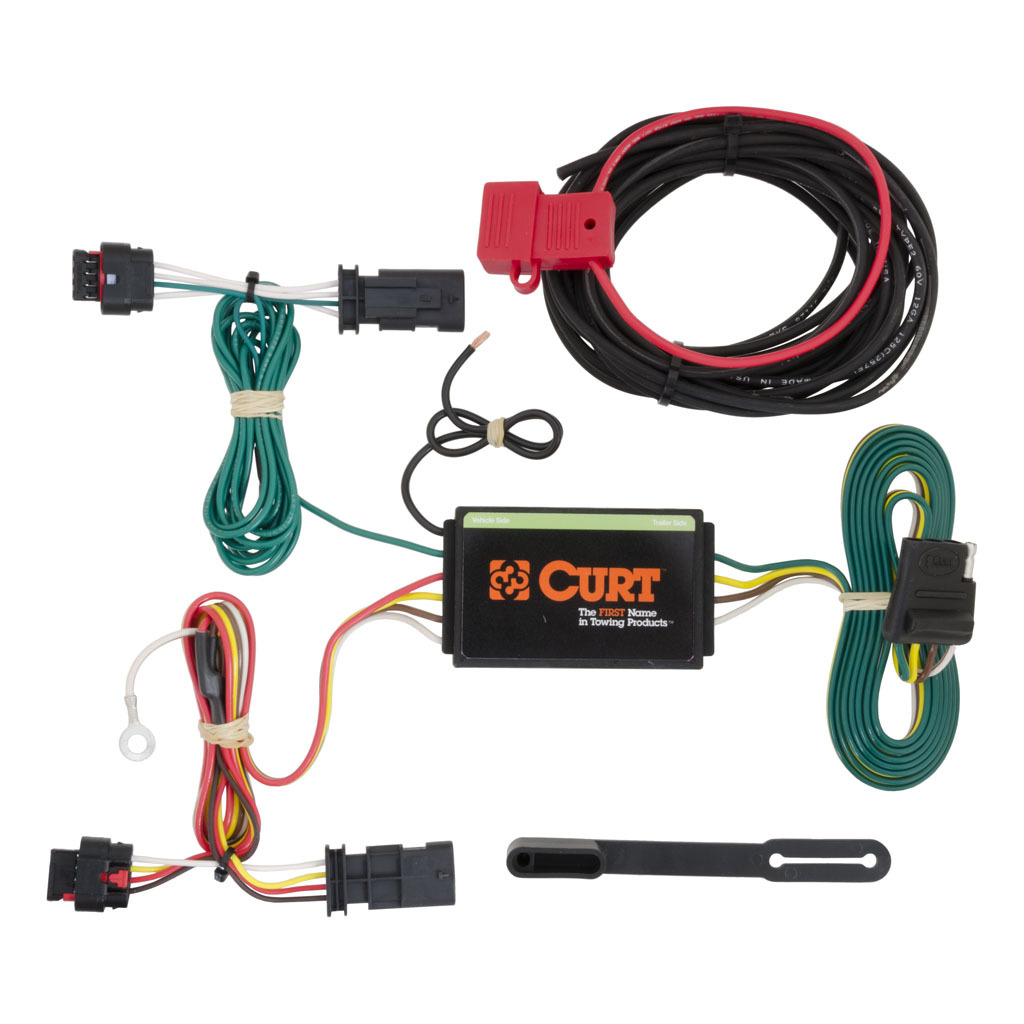

This harness provides a 4-way flat connector socket and comes with a circuit-protected converter. It is designed to be a custom wiring harness for certain years of the Cadillac ATS (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). CURT custom wiring harnesses are long-lasting and quick to install. They come with dust covers to keep your connector clean when not in use and feature a one-year limited warranty to give you peace of mind.

Details

Material: Blank
Warranty: One-Year Limited Warranty
Part Type: Custom Wiring Harness
T-Connector Location: P3,P4
Shipping Weight: 1.630
Battery-Powered: Yes
Electrical System Type: 2W
Turn and Brake Circuits: 3.0 Amps
Tail Light Circuits: 6.0 Amps

Notes

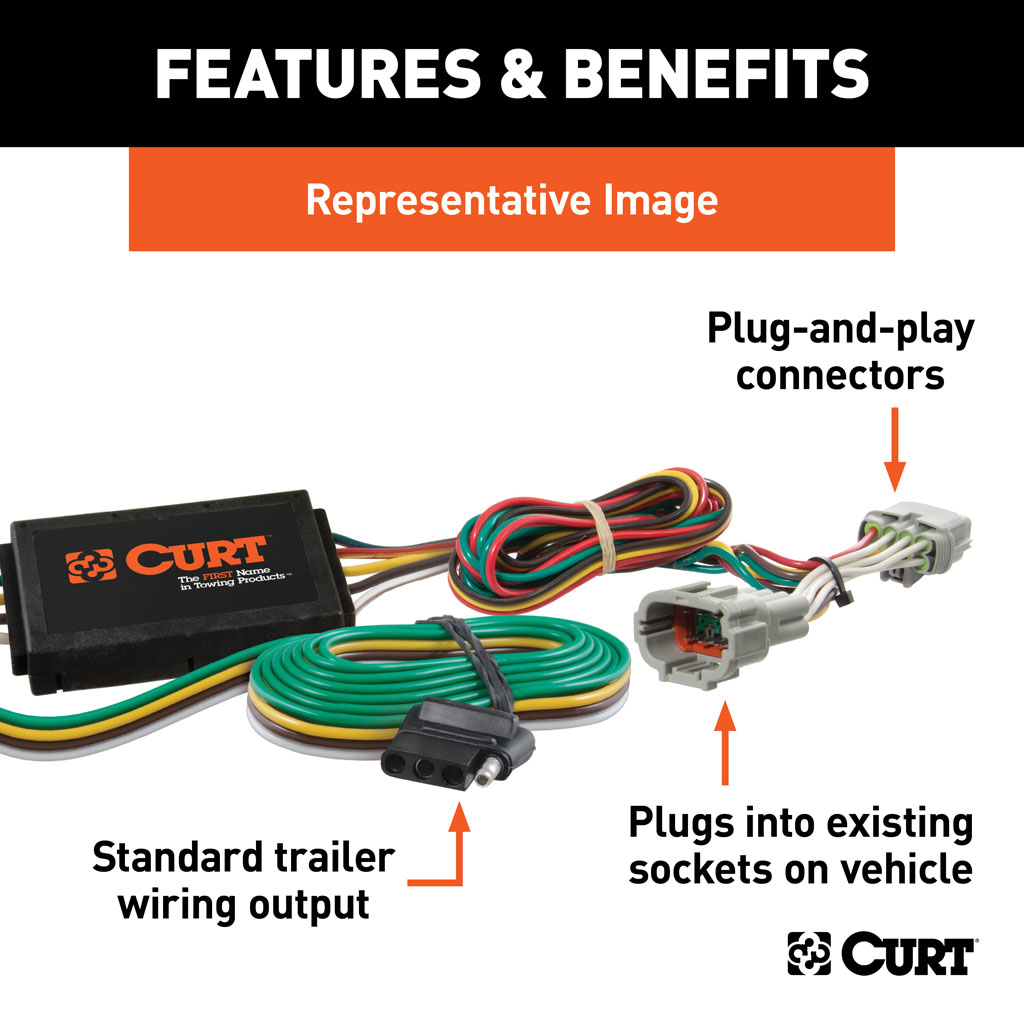

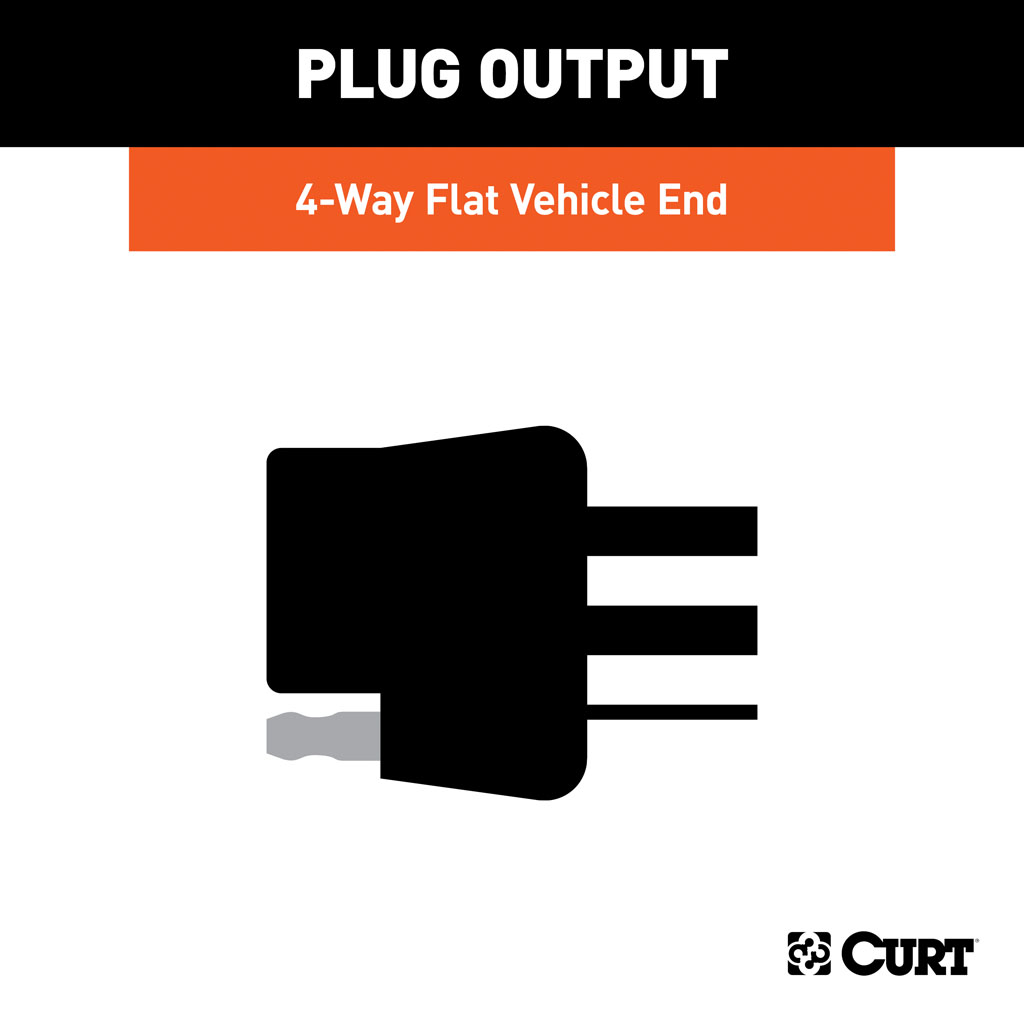

  • Plugs into vehicle tail light assembly to provide a 4-way flat socket
  • Simple plug-and-play design eliminates the need for cutting or splicing

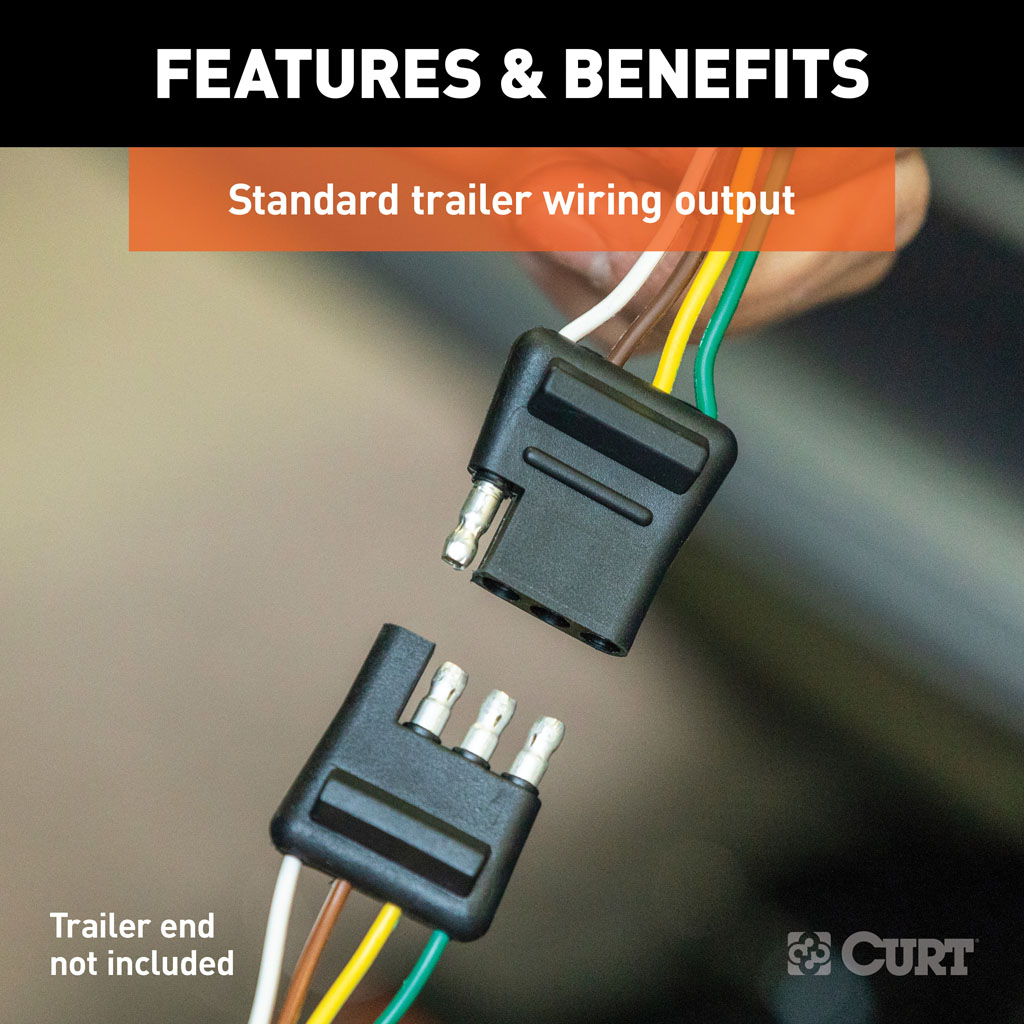

  • 4-way flat output connects tail lights, brake lights and turn signals
  • Equipped with a powered 3-wire to 2-wire tail light converter
  • Constructed with SMT circuitry for better performance and durability

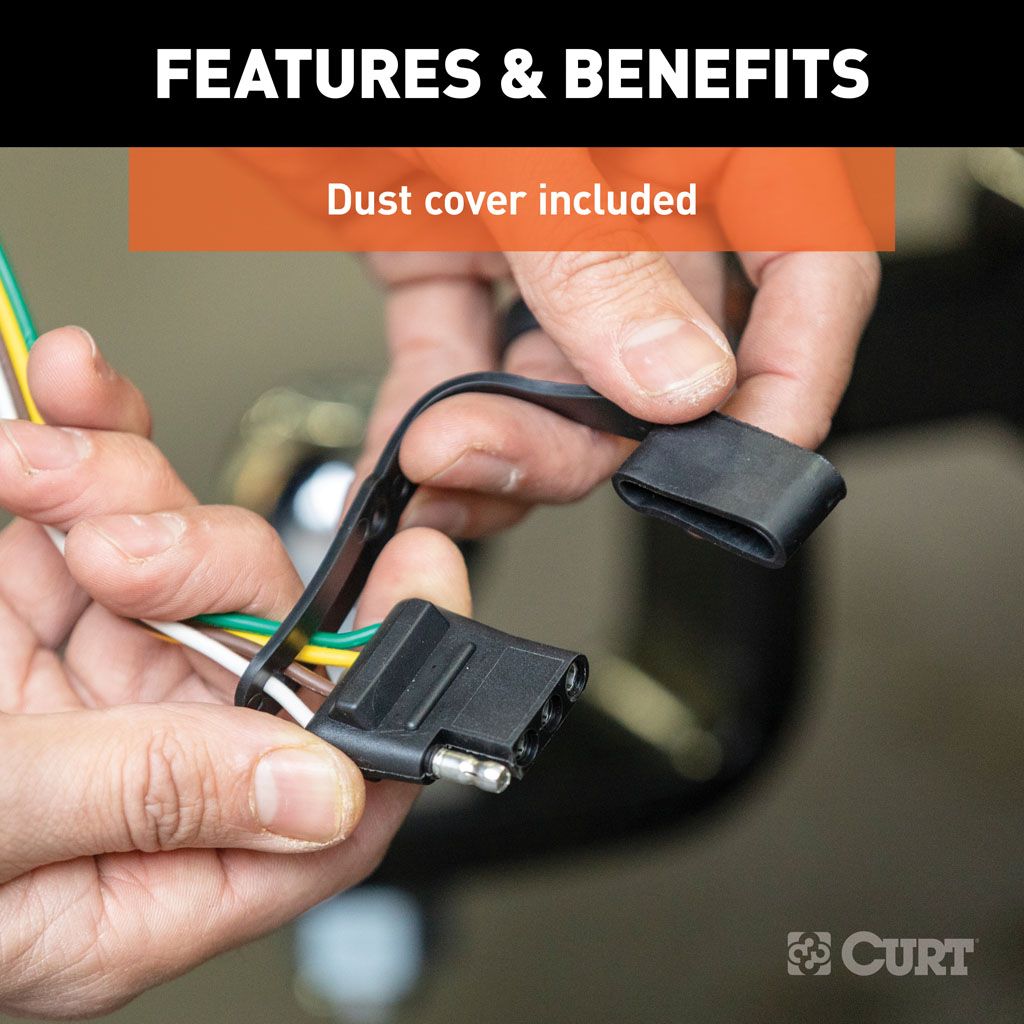

  • Dust cover included to keep connector clean when not in use
  • Backed by a limited one-year warranty

Installation

Instruction sheet: PDF Download

CURT Custom Wiring & Taillight Converters Introduction
