CURT Class 3 Trailer Hitch #13050

$292.85

Add to CompareAdded
SKU: 612314230501 Category:

Description

The CURT class 3 trailer hitch is the most common type of trailer hitch installed on full-size pickup trucks and SUVs. It is also found on full-size cars, crossover SUVs, minivans and mid-size trucks. That is because the class 3 packs the punch of a heavyweight hitch while still staying light on its feet. This CURT class 3 hitch offers a gross trailer weight capacity of 3,500 lbs. and a comparable tongue weight capacity of 350 lbs. It is designed to be a custom-fit trailer hitch for certain years of the Cadillac SRX V6 or V8 models (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It features a round tube frame and comes with all necessary hardware for a complete installation.

The 2″ x 2″ receiver tube opening of this class 3 hitch is able to accept a hitch-mounted accessory, such as a bike rack or cargo carrier, or a ball mount to tow most standard size trailers, including utility trailers, single-horse livestock trailers, boat trailers and large campers. One special feature about the class 3 that is not found in classes 1 or 2 is its compatibility with a weight distribution hitch. When used in combination with a WD hitch, this class 3”s gross trailer weight capacity increases to 5,000 lbs. and the tongue weight capacity to 500 lbs. (NOTE: Never exceed the lowest weight capacity of any towing component).

CURT class 3 trailer hitches are engineered to be strong and capable, having a quality steel frame and a solid finish. They are put through strenuous testing before being deemed ready for market and come with two coatings — a liquid Bonderite coating and a powder coat in high-gloss black — that cure together to form a strong resistance against rust, scratching, UV damage and other wear. Our hitches are our pride, and as such, we back them up with a limited lifetime warranty and a one-year finish warranty.

Details

Product Type Description: Class 3 Trailer Hitch
Warranty: Limited Lifetime
Shipping Weight: 74.000
Drilling Required: No
Main Body: Round
Weight Carrying Capacity(WC): 3,500 LB
Tongue Weight(TW): 350 LB
Receiver Tube Size: 2
Weight Distribution(WD): 5,000 LB
Weight Distribution Tongue Weight(WDTW): 500 LB

Notes

  • Made with a vehicle-specific design for a custom fit
  • Tested for safety in accordance with SAE J684
  • Precisely welded for superior strength and fit
  • Constructed with a sleek, round-tube main body
  • Protected by a durable high-gloss black powder coat finish
  • Co-cured in a rust-resistant liquid Bonderite coating
  • Strengthened with a cast, welded, seamless collar
  • Equipped with an open-back receiver for easy cleaning
  • Backed by a limited lifetime warranty
  • Made in USA

Additional

  • Trailer hitch weight ratings are limited to vehicle manufacturer''s stated capacities

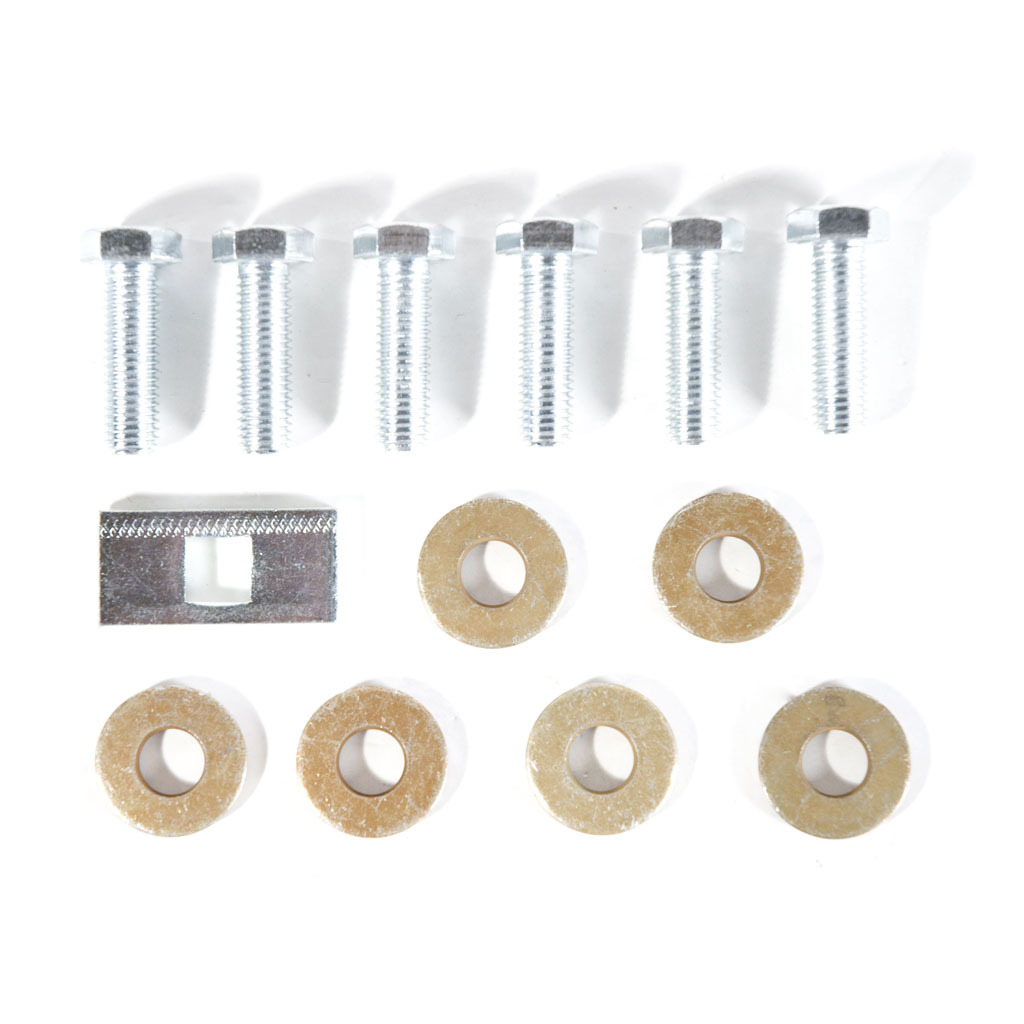

  • Includes installation hardware

Installation

Instruction sheet: PDF Download
