CURT Class 1 Fixed-Tongue Trailer Hitch with 3/4″ Trailer Ball Hole #11595

$229.60

Add to CompareAdded
SKU: 612314115952 Category:

Description

CURT class 1 trailer hitches are the lightest-duty hitches of our rear mount lineup. They are engineered for reliability, welded together with quality steel and blasted clean for a smooth finish. Tested to meet the strict demands of the industry, this CURT class 1 hitch has a capacity to tow up to 1,500 lbs. of gross trailer weight and 150 lbs. of tongue weight. This means it can handle a variety of small trailers such as single-axle utility trailers, canoe and kayak trailers, dirt bike trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).

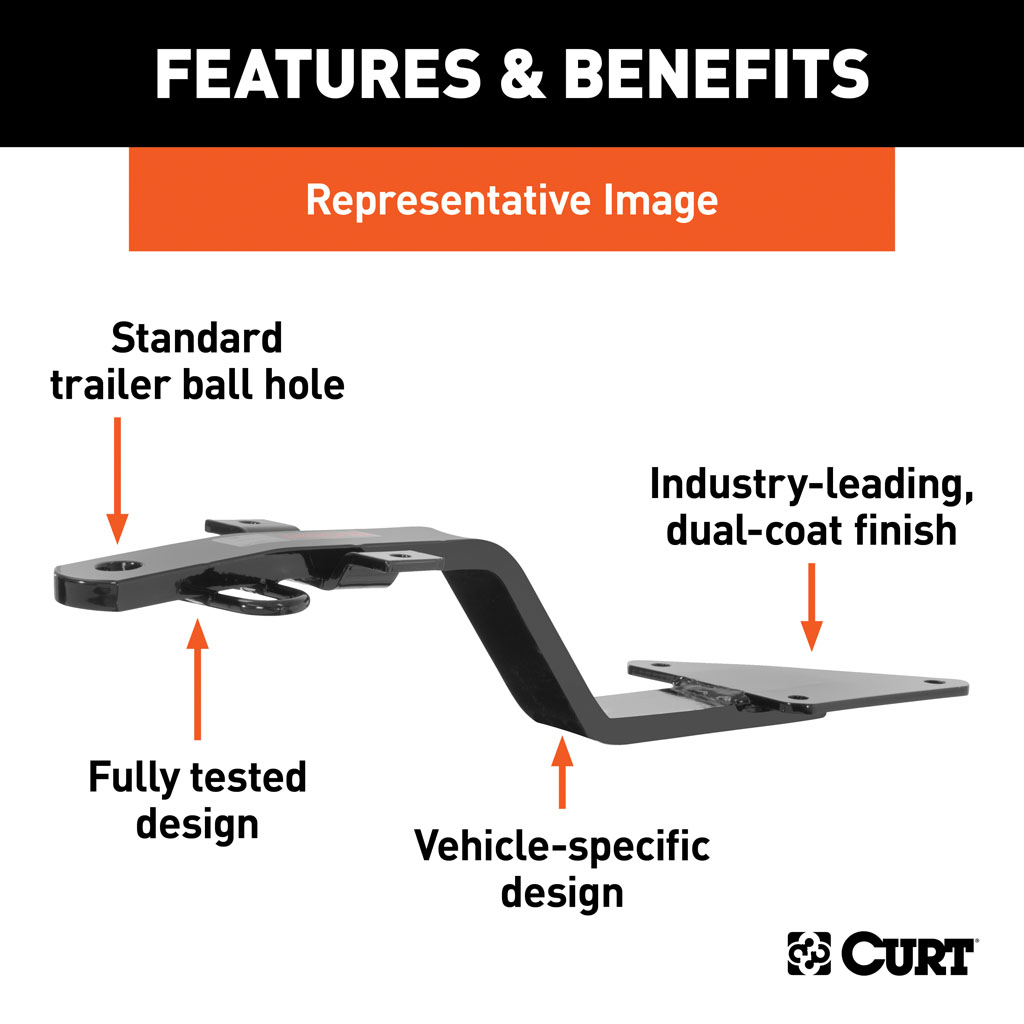

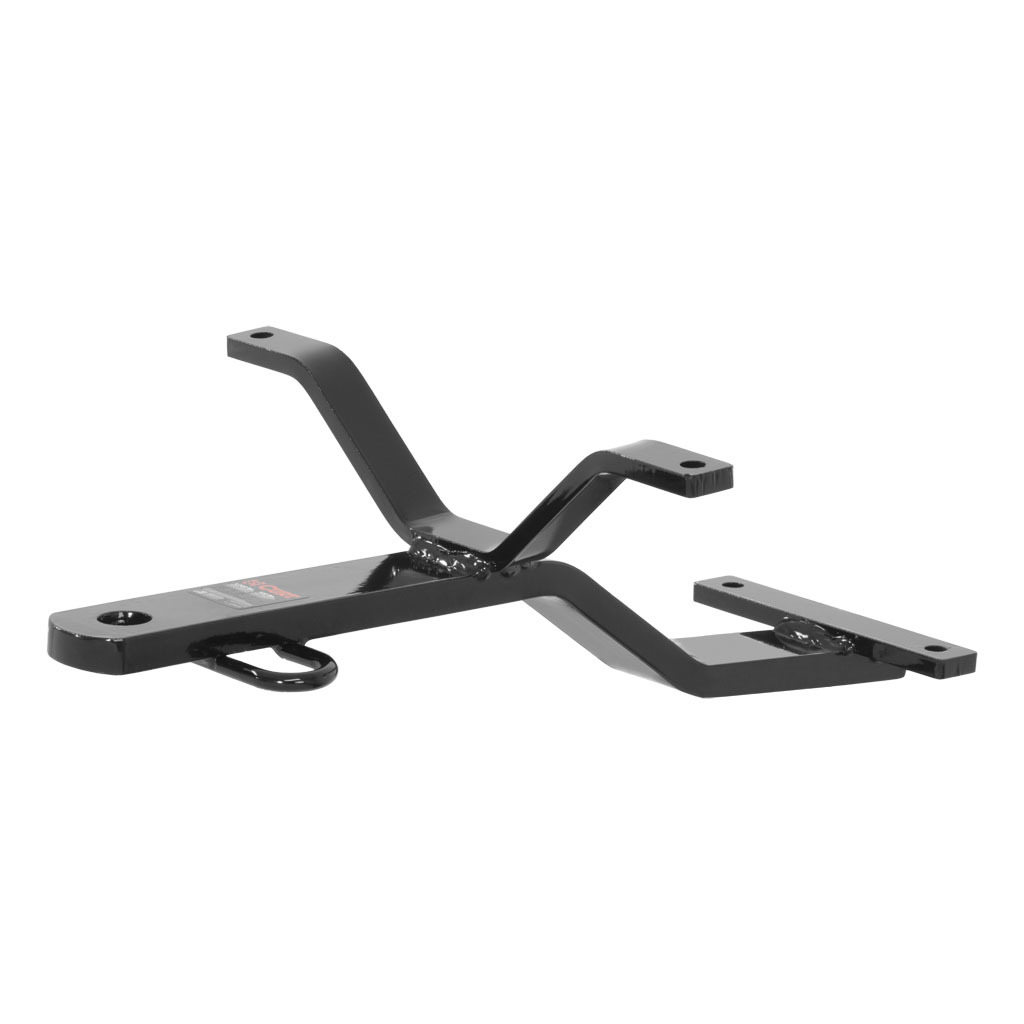

This class 1 hitch is a fixed-tongue hitch, having a fixed draw bar to accept a trailer ball rather than a receiver tube to accept a ball mount. Class 1 hitches are typically mounted on compact cars, full-size cars and some smaller crossover SUVs, minivans and compact SUVs. This particular hitch is designed to be a custom-fit trailer hitch for certain years of the Isuzu Stylus sedan (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It features a square tube frame and comes with all necessary installation hardware.

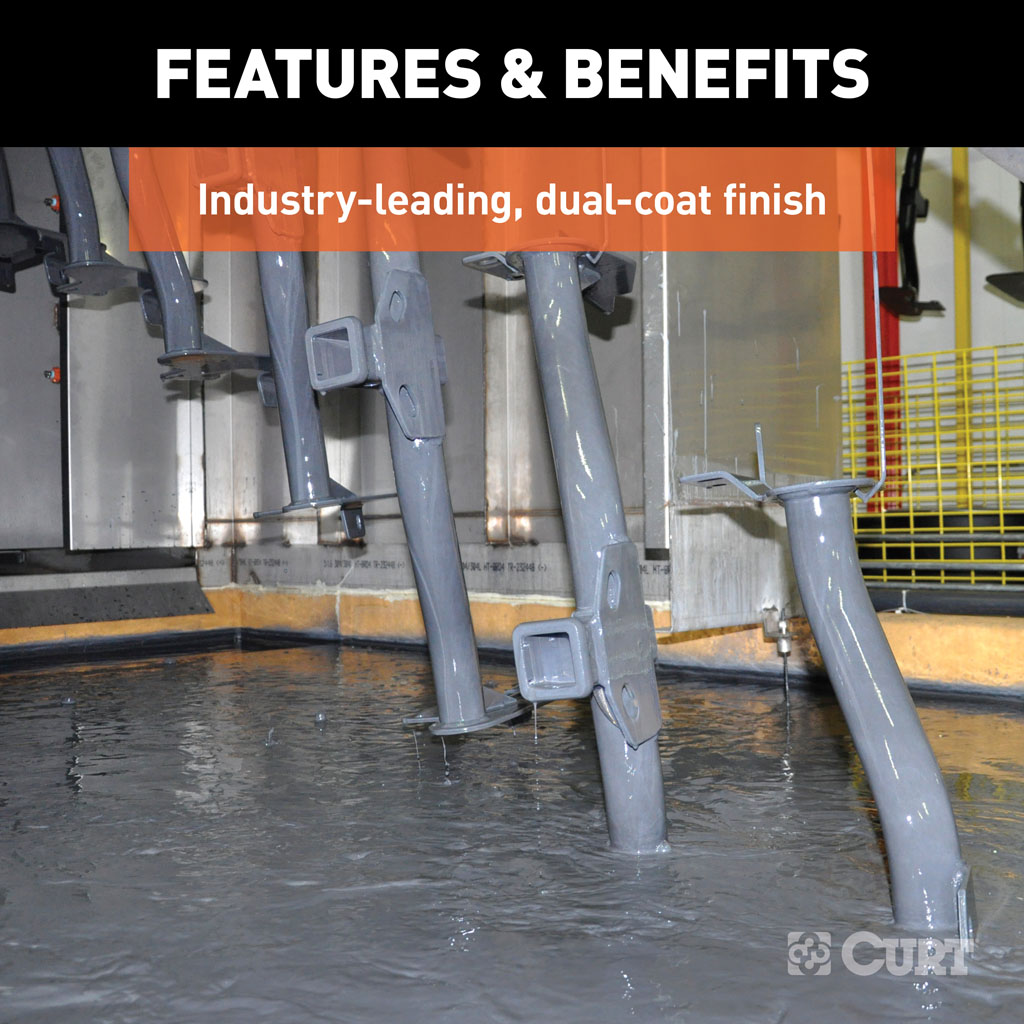

Each CURT class 1 hitch is co-cured with a liquid Bonderite coating and a high-gloss black powder coat that provide a lasting defense against rust, wear and harmful UV rays. Like all CURT custom-fit receiver hitches, this class 1 hitch is made right here in the USA (may include imported hardware) and is backed by a one-year finish warranty and a limited lifetime warranty.

Details

Shipping Weight: 24.250
Product Weight: 19.000
Drilling Required: No
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Part Type: Class 1 Trailer Hitch
Finish: GLOSS BLACK POWDER COAT
Receiver Tube Size: N/A
Ball Hole: 3/4 IN
Material: Carbon Steel
Main Body: Square
Weight Carrying Capacity(WC): 1,500 LB
Tongue Weight(TW): 150 LB
Weight Distribution Tongue Weight(WDTW): n/a
Weight Distribution(WD): n/a

Notes

  • Rated to 1,500 lbs. gross trailer weight and 150 lbs. tongue weight
  • Engineered with a vehicle-specific design for a custom fit
  • Concealed main body for OE look and seamless integration with the vehicle

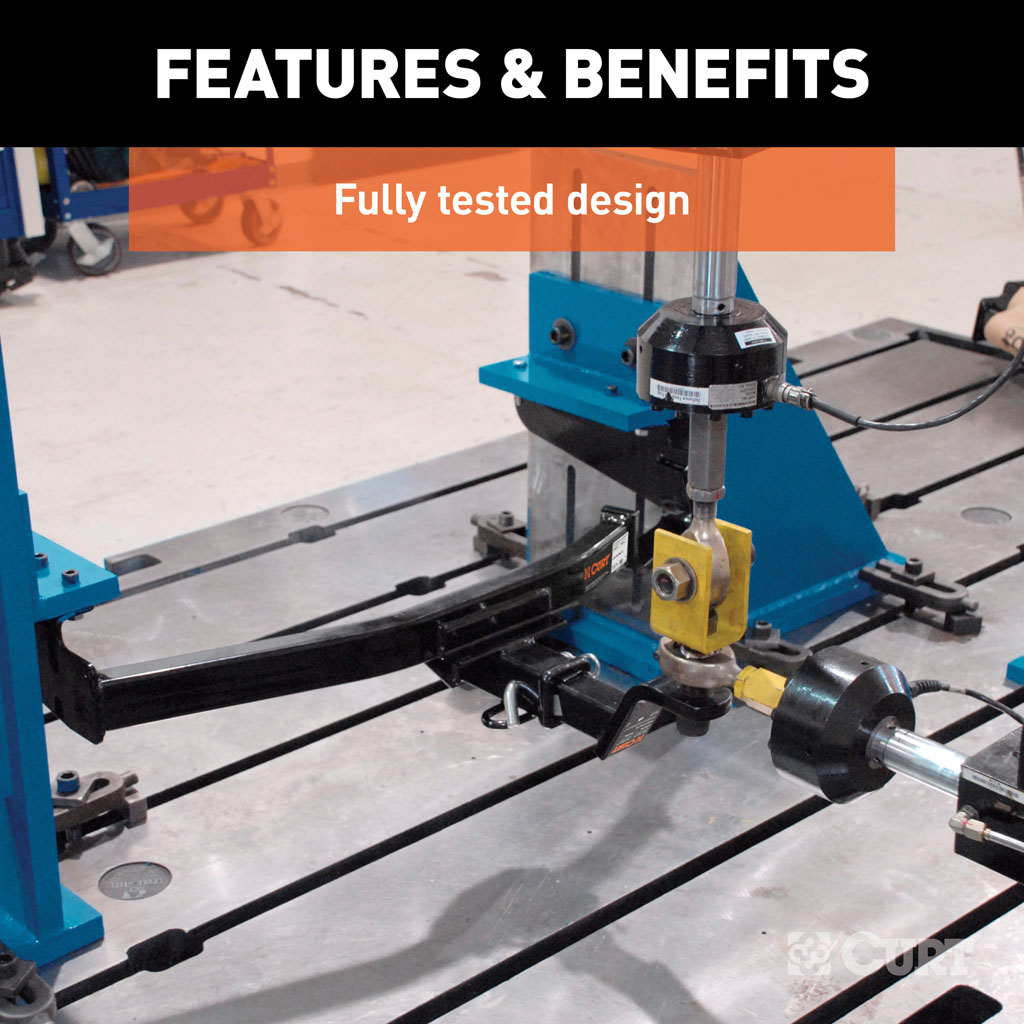

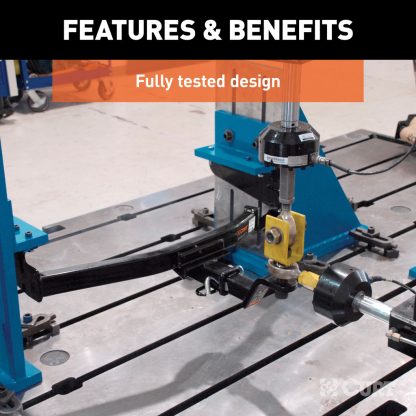

  • Tested for safety in accordance with SAE J684
  • Precisely welded for superior strength and fit
  • Fixed drawbar readily accepts a 3/4" trailer ball shank
  • Protected by a durable high-gloss black powder coat finish
  • Co-cured in a rust-resistant liquid Bonderite coating
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Made in USA (may include imported hardware)

Additional

  • Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
  • Includes installation hardware

Installation

Instruction sheet: PDF Download
